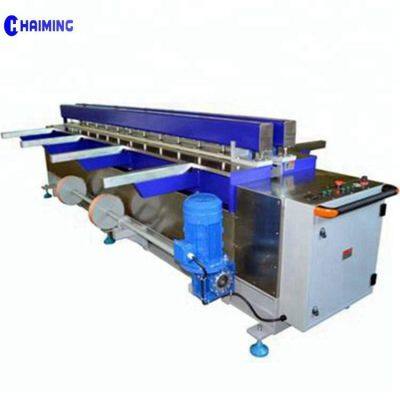

2023 hot sell pe tube butt welding machine
Features:
1.The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
2.suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
3.Control system Siemens PLC, 7-inch color touch screen.
4.Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
5.3mm-40mm welding capabilities, special welding thickness of up to 60mm.
Range of Application
Technical Data:
Model
| S-PH3000
| S-PH4000
| S-PH6000
|
Machine Length( mm)
| 4300
| 5300
| 7500
|
Machine Width (mm)
| 1900
| 1900
| 1900
|
Machine Height (mm)
| 1100
| 1150
| 1200
|
Total Weight approx. (kg)
| 2800
| 3600
| 5950
|
Welding material thickness(mm)
| 3-40
| 3-40
| 3-40
|
Length of welding materials(mm)
| 3025
| 4025
| 6025
|
Minimum diameter welded pipe(mm)
| 360
| 480
| 480
|
Air pressure
| 8,0 bar
| 8,0 bar
| 8,0 bar
|
Power supply(V)
| 380
| 380
| 380
|
Heating element power(KW)
| 3.5
| 4.5
| 3.5X2(Stepwise heating)
|
Reel motor power(KW)
| 2.2
| 2.2
| 3
|
Heating element
(Teflon coated T max = 260° C)
| 3200mmX20mmX50mm
| 3400mmX20mmX50mm
| 6200mmX20mmX50mm
|
Welding materials
| PP PE PVDF...
| PP PE PVDF...
| PP PE PVDF...
|
Welding area lighting
| LED
| LED
| LED
|
Our service:
1. Warranty for 12 months.
2. We accept OEM & ODM.
3. In some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply service
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade . And our factory have many skilful peration of workers and the stability of the scale of production. And we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
>>
