| US$42,600.00 | 1 sets (MOQ) |

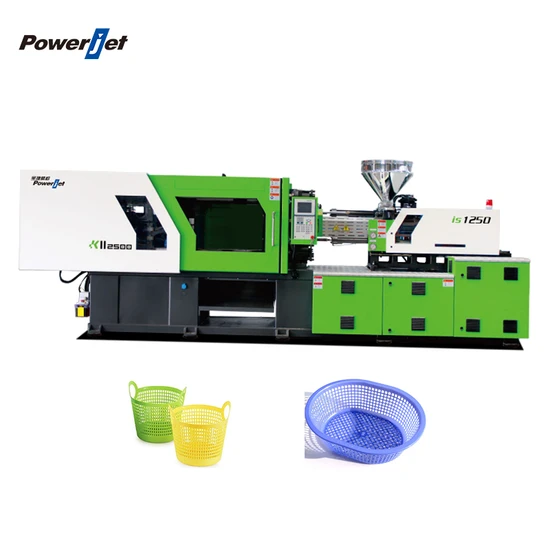

| DESCRIPTION | UNIT | KII250-V7/S7 | |
| Clamping Unit | Clamping force | kN | 2500 |
| Opening stroke | mm | 540 | |
| Max daylight | mm | 1120 | |
| Platen size | mm | 871x871 | |
| Space between bars | mm | 580x580 | |
| Max mold height | mm | 580 | |
| Min mold height | mm | 220 | |
| Ejector stroke | mm | 150 | |
| Ejector force | kN | 77 | |
| Ejector number | pcs | 1+4 | |
| Injection Unit | Screw diameter | mm | 52/55/60 |
| Scew L/D ratio | L/D | 21/21/19 | |
| Injection pressure | MPa | 209/187/157 | |
| Shot volume | cm3 | 595/665/792 | |
| Shot weight (PS) | g | 540/604/719 | |
| Iniecton rate | g/s | 216/241/287 | |
| Plasticizing capacity | g/s | 30/38/45 | |
| Screw stroke | mm | 280 | |
| Screw speed | rpm | 189 | |
| Carriage stroke | mm | 386 | |
| Power Unit | Hydraulic system pressure | MPa | 17.5 |
| Pump motor power | KW | 22/40.1 | |
| Heater power | KW | 16.02 | |
| Number of temp control zones | PCS | 1+4 | |
| General | Oil tank capacily | L | 320 |
| Machine weight | T | 7.6 | |
| Machine dimensions | m | 5.8x1.7x1.9 | |
