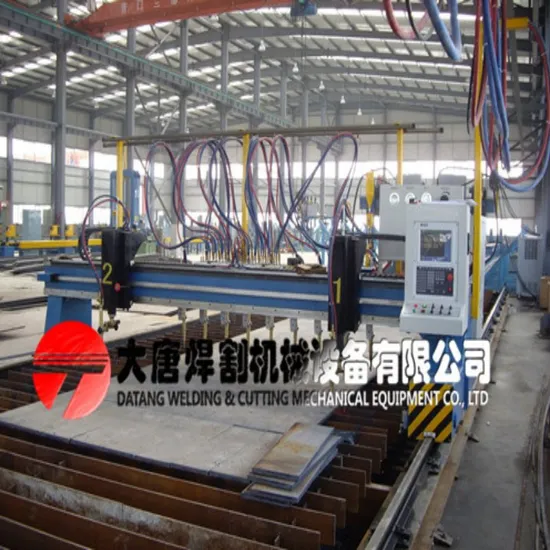

Datang CNC Plasma Flame Straight Cutting Machine

Product Description

DTCN CNC/flame/plasma cutting machine adopt advanced technology at home and abroad. It is specially designed for metallic structure processing. It is high- efficient in working. It can cut transversely, longitudinal or at any position of arc curve. It has high precise and little transfiguration. This machine has reasonable structure, easy operated and advanced technics.
Powered tank rotator, idle tank rotator and pedestal are welding frame structure, which are get rid of the stress after welding. The rollers on the tank rotators adopt the same structure. They have the characters of steady capability and firm. The rollers have the characters of large driving torque and long time using life. Powered tank rotator adopts double driving way, two rollers will driven by two motors to transmit the torque and driving the workpiece runing in set speed. The output rotation speed of two motors will be controlled by same inverter to ensure the same linear speed of two rollers, so that guaranty the workpiece steady runing on the tank rotator.

Specification	DTCN-4000	DTCN-4500	DTCN-5000	DTCN-5500	DTCN-6000
Rail distance	4000 mm	4500 mm	5000 mm	5500 mm	6000 mm
Cutting width	3200 mm	3700 mm	4200 mm	4700 mm	5200 mm
Rail length	15000 mm (can be designed as required)
Valid cutting length	12500 mm (can be designed as required)
Cutting speed	50-1000 mm/min(no grade timing )
Back speed	6000 mm/min
Cutting thickness	6-100 mm(Single cutting torch 100mm)
Cutting precision	±0.5 m/m
Roughness of surface	Ra12.5-25
Cutting gas source	Oxygen and Acetylene or propane
Power	Three phase 380V±10%,50Hz,3KVA

---
