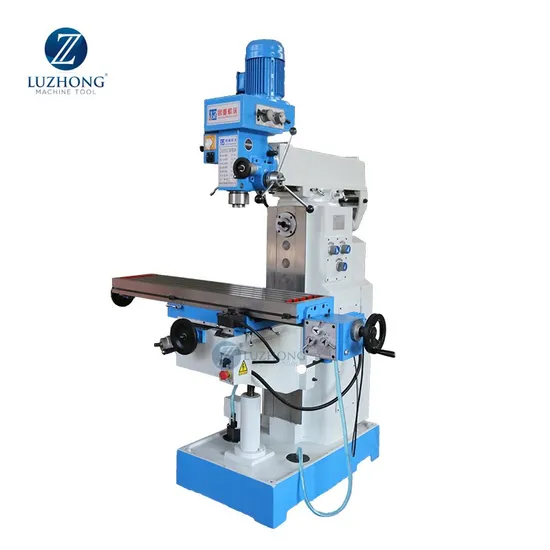

ZX6350C Factory direct sale vertical milling and drilling machine

Product Description

Cheap Portable Small ZX6350C/D/A Drilling And Milling Machine
Product Description
Product Parameters

Specifications(mm)	ZX6350C	ZX6350D	ZX6350A
Max. drilling dia.(mm)	50	50	50
Max. end milling width(mm)	100	100	100
Max. vertical milling dia.(mm)	25	25	25
Max.boring dia.(mm)	120	120	120
Max. tapping dia.(mm)	M16	M16	M16
Distance from spindle nose to table surface(mm)	80-460	80-460	80-460
Spindle taper	MT4	MT4	MT4
Horizontal Spindle taper	ISO40	ISO40	ISO40
Spindle speed range(r.p.m)	36-1526(V) 40-1300(H)	36-1526(V) 40-1300(H)	36-1526(V) 40-1300(H)
Spindle travel(mm)	120	120	120
Table size(mm)	1200×280 Optional: 1500x280
Table travel(mm)	600×280 Optional: 1000x280
Table feed speed(mm/min)	X:16-480	X/Y:22-555	X/Y:22-555 Z:300
Overall dimensions (mm)	1500×1600×2200	1500×1600×2200	1500×1600×2200
Spindle motor power (kw)	1.5/2.2(V) 3(H)	1.5/2.2(V) 3(H)	1.5/2.2(V) 3(H)
Machine weight (kg)	1300/1400	1350/1450	1400/1500

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
