Colo Compact Powder Coating Spray Paint Cabin Booth for Wheel Rim

Product Description

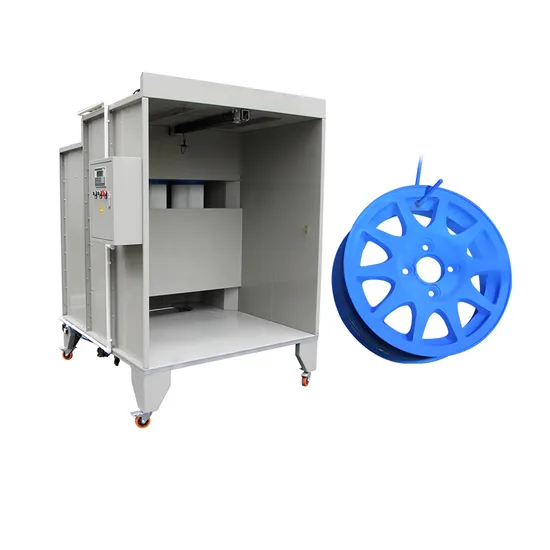

Colo Compact Open Face Batch Filter Powder Coating Spray Paint Cabin Booth for Wheel Rim
COLO-S-1517 Powder coating booth provides a bright and clean environment for spraying process. Space-saving manual powder booth features easy and economical for powder application of small and medium-sized workpieces.
This booth is 1700mm in height by 1500mm in width by1000mm in depth, also could custom designed, manual and automatic spray stations are also available.
Product Description
Product detail show:
How does powder coating booth work?
The powder spray booth fan draws air through filters that creates a negative pressure in the chamber, thus oversprayed powders in the air flow will gather in the filters while an automatic pulse-jetting device cleans the filter by interval, through which powders drop into a recovery hopper beneath the booth.
Manual Powder Coating Booth for wheel rim Feature:
1. A high-performance fan efficiently circulate air with low noise and less energy.
2. 0.1 Micron high-precision filters ensures only particle-free air discharged to workshop and increase powder recovery rate.
3. Powder-coated steel constructed booth is corrosion resistant for longer service life.
4. A removable powder hopper at booth bottom simplifies the utilization of recovery powders
6. A user-friendly PLC panel integrates all functions, such turning on / off fans, setting pulse-jetting time and interval, light on/off, emergency stop etc.
Manual Powder Coating Booth Specifications:

Model	COLO-S-1517
Operating Dimensions	Width1500*Depth1000*Heght1700mm
Overall dimensions	Width1600*Depth2000*Heght2250mm
Weight	480kg
Power Supply	220V/380V, 3Phase, 50-60HZ
Fan Power	2.2kw
Filter Count	3 pcs, Quick-release Type
Filter Material	Polyester
Filter Cleaning	Pneumatic
Air Consumption	4000m^3/h

Company Profile
Packaging and Loading:

PACKAGING	Carton/Wooden package
MOQ	1pc/model
DELIVERY TIME	5-10 working days after deposit receive

Please contact us NOW to get the latest powder coating product catalog and price. Welcome to send an inquriy to us.

---
