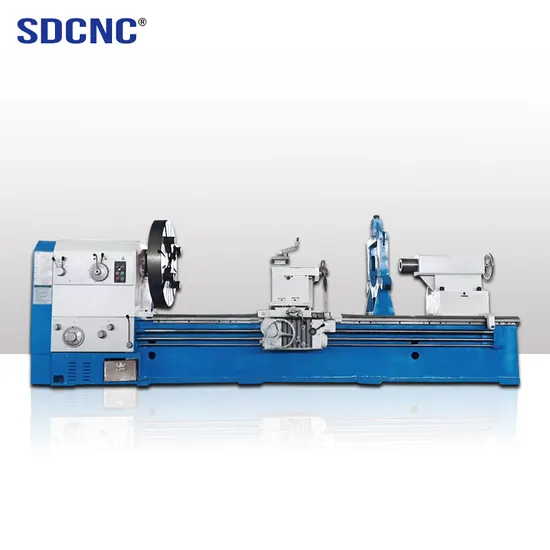

Sdcnc Universal Cw6180 Traditional Metal Processing Machine Machinery Lathe CNC Cutting Machine

Product Description

Product main features and uses:1. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.2. The width of the side wall of the double bed ribs, inner ribs with box and diagonal reinforcement integral bed structure, high integral rigidity.3. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.4. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.

Product Parameters
Product main technical specification:

Item	Specifications	Units	CW6180E
Machining range	Max.swing over bed	mm	800
	Max.swing over cross slide	mm	500
	Max.turning length	mm	1000-12000
	Bed width	mm	550
Spindle	Spindle nose code		C11(D11)
	Diameter of the spindle	mm	105
	Spindle inside taper	mm	Metric 120 1:20
	Range of spindle speeds	r/min	10-700
	Spindle speed series		four gears to change speed ,no grade to change frequency
Feeding system	Longitudinal and transverse feeding number range	mm/r	56;0.1-12
	Screw pitch		12
	Number range of the thread under Metric system	mm	44;1-120
	Number range of the thread under British system	mm	26;14-1 inch
	Number range of the module thread	mm	45;M0.5-M60
	Number range of the diametric thread	mm	24 28-1
	Slide fast moving speed	mm/ min	4000
Knife rest	Max cross travel of turret	mm	420
	Max travel of compound slide	mm	200
	Tool section size	mm	32*32
Tailstock	Sleeve diameter of tailstock	mm	100
	Sleeve trip of tailstock	mm	250
	Cone hole taper tailstock's sleeve	Morse	Morse 6
	Main motor power	kw	11
Size	L*W*H	mm	4000*1320*1500
Weight	Net weight	kg	4050

---
