Basic Info.
Structure
Multistage Pump
Application
Submersible Pump
Industry
Submersible Pump
Performance
Automatic Pump
Name
4′′ Oil-Filled Submersible Pump, Oil-Immersed Pump
Classification
Deep Well Pump
Hull Material
S.S, Cast Iron, Brass
Cooling
Oil/Water Cooling
Transport Package
Plywood Case
Production Capacity
3, 000pieces/Month
Product Description

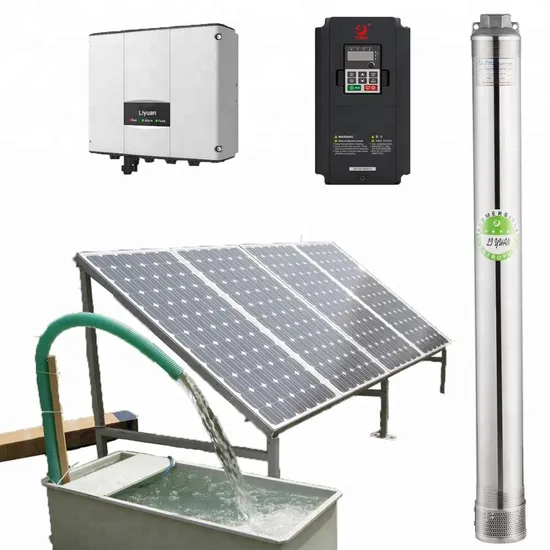

Agriculture Brushless Submersible Deep Water Well Solar Pump
| Description | Solar Water Pump |
| Specification | AC Solar pump,DC Solar pump, AC/DC Solar pump |
| Pump Size | AC Solar pump: 3" ,4",5",6",8",10",12"
DC Soar pump:3",4" |
| Power | 0.3hp-300hp |
| Volotage | DC : 24V, 48V, 72V, 96V, 120V, 280V
AC:110V,220V,230V,380V, 410V,440V,480V |
| Material | Stainless steel |
| Medium | Clear water,
Hot water
Acceptance customized for acid and alkaline water |
| Controller | AC Inverter :MPPT
AC Multi-function all-in-one Inverter
DC Controller
AC/DC Controller |
| Power | Solar, Solar/Electric |
| Brand | Liyuan ,ATA, MMS, Accept custom brand |
1. Product Details
| Model No. | Universal Model No. | Motor Power | | Q | Flow Rate |
Single Phase
220-240V | 3 Phase
380-400V | HP | KW | L/min | 50 | 66.7 | 83.3 | 100 | 117 |
| m3/h | 3 | 4 | 5 | 6 | 7 |
| J150/7S | J150/7 | 100QJ6-26/7(S) | 1 | 0.75 | Capacity
(m) | 39 | 36 | 31 | 26 | 22 |
| J150/9S | J150/9 | 100QJ6-34/9(S) | 1.5 | 1.1 | 50 | 46 | 42 | 34 | 28 |
| J150/13S | J150/13 | 100QJ6-50/13(S) | 2 | 1.5 | 71 | 67 | 63 | 50 | 41 |
| J150/18S | J150/18 | 100QJ6-70/18(S) | 3 | 2.2 | 105 | 100 | 90 | 70 | 57 |
| | J150/26 | 100QJ6-110/26 | 4 | 3 | 150 | 145 | 132 | 110 | 82 |
| | J150/34 | 100QJ6-130/34 | 5.5 | 4 | 187 | 180 | 168 | 130 | 107 |
| | J150/42 | 100QJ6-166/42 | 7.5 | 5.5 | 233 | 225 | 207 | 166 | 132 |
| | J150/56 | 100QJ6-220/56 | 10 | 7.5 | 310 | 300 | 275 | 220 | 176 |
Factory Information
Guangdong Jiangmen Liyuan Pump Co., Ltd. has started its production of submersible water pumps since 23 years ago. It is an ISO 9001:2008 approved factory and all products have passed CE standard.
Product Feature 1) CE standard approved.
1) Unqiue Item number.
2) Thicker pipe wall than normal product in the market.
3) Bearing: domestic, NSK, SKF, etc.
4) Self-design impellers.
5) 100% brass wire, bigger and deeper slot for motor.
6) Strictly quality control from material receiving, pre-entering warehouse to exiting warehouse and packing.
Delivery Time
Normal lead time: 7 - 15 days based on the order quantiy.
>>
