Introduction: 1.The Model rotary convection ovens divided into three parts electric , gas and diesel oil type .itcan bake different series of bread, cake , moon cake , poultry and many other pastries .It is widely applicant to used in food factory, supermarket, bakery, department, units ,and army. Also it’s suitable for Individual food processing house, cake house, west biscuits house.2.The whole adopt assembly structure, the appearance made of stainless steel , the inside of the oven which for baking is made of importing alclad sheet. The frame can moving freedom,and the top of the inside oven has a circumrotate pothook, and adopt blast force heated air circulation; this can enhance the efficiency of the thermal transmission , and reduce the heating time, so it may cause a more frugal energy.
Application: The industrial bread baking oven / rotary baking oven / rotary rack oven widely used in baking bread, biscuits, cakes, moon cake, etc
Features:1)Whole stainless steel material,PLD computer control
2)High heating efficiency,imported burner,heating duct and high quality heat preservation material
3)The temperature can be adjusted automatically
4)Large capacity and suitable for various kinds of baking food
5)Good baking effect, Soft hot aircirculation system,baking product well distributed and wonderful taste
6)Suitable for individual baking house, food processing plant, supermarket, department, units and others.
Size Information
Power source
| model
| 64 trays
| 32 trays
| 16 trays
|
Electric power
| Dimension
| 3050*2000*2400mm
| 1700*2400*2200mm
| 1500*2070*2200mm
|
| Tray size
| 400*600/460*720mm
|
|
|
| Power
| 92kw
| 50kw
| 35kw
|
| Weight
| 2500kg
| 1500kg
| 1300kg
|
| Voltage
| 380v, 3phrase
|
|
|
Gas power
| Dimension
| 3050*2000*2400mm
| 1700*2400*2200mm
| 1500*2070*2200mm
|
| Tray size
| 400*600/460*720mm
|
|
|
| Power
| 5.45kw
| 2.1kw
| 2.1kw
|
| Gas consumption
| 6liter/h
| 3liter/h
| 3liter/h
|
| Weight
| 2500kg
| 1500kg
| 1300kg
|
| Voltage
| 380v, 3phrase
|
|
|
Diesel power
| Dimension
| 3050*2000*2400mm
| 1700*2400*2200mm
| 1500*2070*2200mm
|
| Tray size
| 400*600/460*720mm
|
|
|
| Power
| 5.45kw
| 2.1kw
| 2.1kw
|
| Diesel consumption
| 6 kg/h
| 3 kg/h
| 3 kg/h
|
| Weight
| 2500kg
| 1500kg
| 1300kg
|
| Voltage
| 380v, 3phrase
|
|
|

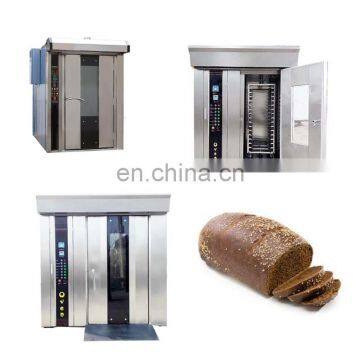

16 trays rotary oven:
32 trays rotary oven:
64 trays rotary oven:
Detailed Images
Fashional Design:
The machine has inner lamp and glass window,can see the baking situation during the production process,and it has time-alarmer,make sure production more safer
Baking tray size:
oven is suitable for 2 differenct tray sizes400*600mm460*720mm
Stainless Steel Rack:
High quality 304 stainless steel,open the door of the Oven,the trolly will face to us directly. It will be easy to pull the trolly out of the oven.One trolley in and out to save labor.
Related Products
Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc. 2.Orange provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder:Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc. 5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time. 6.The tracking number will be provided to you once the consignment is shipped.
After Sales Service
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
a. Before sending the machine, we will test and adjust, so you can use directly when you get it.
b. Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we
will solve your problems in time.
If you are caught in some problems when using our products, welcome to contact us at any time.
a. Any problems occur while using, professional advice will be offered.
b. All kinds of frequently used parts are supplied all the year round.
Company Introduction
FAQ
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or Escrow.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed
idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact
within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q6 : Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical
freight for our customers.
>>
