10KV 10KA LED SPD Surge Protector for LED Street Light Street Light Surge Protector for Tunnel Lighting
Product Description

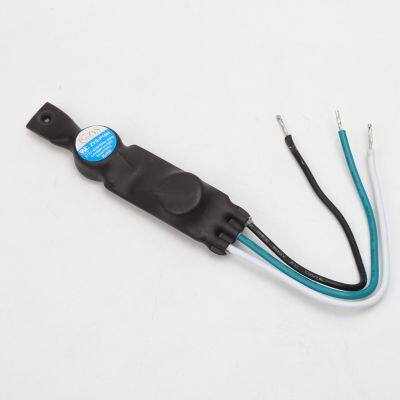

Product Description Key attributes Industry-specific attributesNumber of Pole 2 Rated Voltage 277-480V Max Discharge current 10000 Other attributesPlace of Origin Guangdong, China Model Number ZYS-P10H Nominal Discharge current 5000 Rated working voltage/Un(VAC) 249-510V Maximum working voltage/MCOV/Uc(VAC) 510V Rated load current/IL(A) 5A Nominal discharge current/In(kA) 5KA Maximum discharge current/Imax(kA) 10KA Surge impulse voltage/Uoc 10KV Voltage protection level/Up(V) L-N,L-G/PE,N-G/PE≤1.5KV power supply system TN Waterproof grade IP62 work environment -40℃~+85℃ Packaging and deliveryPackaging Details Carton Package Port Yantian Port Supply AbilitySupply Ability 5000000 Piece/Pieces per Year Product Description Overview ZYS-P10H series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns. Product Paramenters Features* Applicable to class I or II lamps * Built in protection mode: L-N, L-PE,N-PE * Built in thermal separation function for higher security * Parallel isolation design, excellent protection performance * Excellent surge resistance and very low residual voltage * Double green cable andwire * The product is small and convenient for embedded installation * IP62 dust proof and waterproof grade Specification
