EU Stock Growatt off Grid Solar Inverter 48V 5kw 3.5kw 5000W SPF 5000es Hibrid Solar Inverter with MPPT

Product Description

Product Description

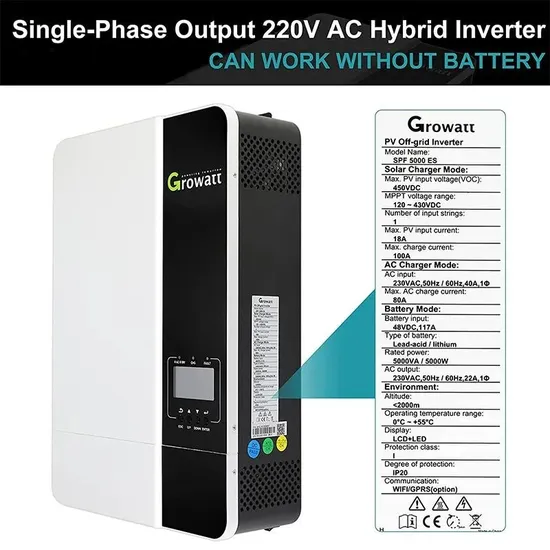

Growatt SPF3500~5000ES is 230VAC output voltage off-grid inverter for backup power and self-consumption application, maximum PV input voltage up to 450VDC. also it can work without battery to saving system investment cost. Features of Growatt SPF3500~5000ES Off Grid Inverter 1. Integrated MPPT charge controller. 2. Equalization charging function. 3. Work with battery or without battery. 4. Maximum PV input voltage up to 450VDC. 5. Configurable grid or solar input priority. 6. Optional WIFI/ GPRS remote monitoring. 7. Support parallel operation for capacity expansion up to 30kW. 8. PV and Grid power the load jointly if PV energy unsufficient. 9. Flexibly schedule the Inverter charging and discharging time.

Wiring Diagram
Parallel Operation in Three Phase:
One Growatt SPF Off Grid Solar Power Inverter in each phase: Power ConnectionThere are more inverter connection example in user manual, such as six solar power inverter in parallel, three inverter in one phaseand only one inverter for the remaining two phases.
Product Parameters

Datasheet	SPF 3500 ES	SPF 5000 ES
Battery Voliage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W	6000W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker	1/1
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	80A	100A
AC CHARGER
Charge Current	60A	80A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm	330/485/135mm
Net Weight	11.5kgs	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Products SeriesOff Grid Inverter3KW/5KWSingle Phase 220-240V 50/60HzUp to 6 units in parallelOn Grid Inverter3-6KW2 MPPTs
Single Phase 220-240V 50/6HzOn Grid Inverter15-40KW3/4 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-70KW3 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-250KW6-10 MPPTs
Three Phase 380-415V/460-500V 50/6Hz
Projects Case
* Open station supports one-click installation and registration* Problem support one-click dispatch and navigation* Safe operation, traceable logs, etc* Support full lifecycle data storage to ensure data security and reliability.
Packaging & Shipping
Company Profile

Anhui Tongyuan Environment Energy Saving Co., Ltd. (stock code: 688679) was established on April 15,1999. It was successfully listed on the Science and Technology Innovation Board of the Shanghai Stock Exchange on December 25, 2020. The company is positioned as a "one-stop environmental solution provider" and is committed to providing customers with leading ecological and environmental technology services in China. Toyon Energy Co., Ltd is one business unit of Tongyuan Environment that focuses on the field of new energy, committed to promoting the transformation of traditional energy to green energy. Toyon's business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields, while providing multi scenario integrated application solutions for light storage. Through continuous innovation and technological upgrades, Toyon can provide customers with efficient, reliable, and environmentally friendly new energy products and services, making a positive contribution to achieving sustainable development.

FAQ1.What main products can you provide? We can provide many series of solar products,mainly producing the solar panels, solar inverters,power wall,lithium ionbatteries,gel batteries and also all in one solar system solution according to your needs. 2. How is your technical support? We can provide lifetime online support through WhatsApp/ Wechat/ Email. Any problem after delivery, we will offer you a video call anytime. 3. What about the lead time? We can always deliver within 5-15 working days.The common products we always have the stock, it can be sent out within 15 days. While the big order needs to negotiate the finish production time and promise it to our customers. 4. Can you provide OEM service? Yes, as a professional solar system manufacturer, we can provide customer-made service with OEM and on-site installation comprehensive support, and after-sales services. 5. How can we guarantee quality? We can provide a pre-production sample before mass production and also final inspection before shipment. We can also provide 24-hour after-sales service. Regardless of the time difference, we will solve the problem for you as soon as possible. 6. What's the payment term? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.Accepted Payment Type: T/T, L/C, PayPal.

---
