Surface Metal Grinder Machine-CNC Double Column Milling Machine-CNC Gantry Rail Grinding Machine-Side-End Milling Machine-Metal End Face Milling Machine

Product Description

LC-1060NC CNC Gantry Surface Milling Machine
Product Introduction

The thickness of the workpiece is coarse and the precision milling is integrated, the numerical control system controls the size to set the processing size, the automatic measurement, the second side automatic coarse and finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness and roughness of the workpiece.
Details Show
1.Firmly hold the workpiece, ensure the safety of the processing process, through the demagnetization controller and machine tool connection, through the button operation demagnetization, very convenient to use, improve the machining efficiency of the machine up to more than 80%
2.The large spiral normal blade provides a small cutting tool for stable cutting, and the thickened reinforcing blade has a finishing treatment
3.The friction resistance is very small, and it has the characteristics of high precision, reversibility and high efficiency.
4.Workpiece processing coarse, fine milling integration, numerical control system control size setting processing size, automatic measurement, automatic coarse, finishing, reduce the working intensity of the operation staff, improve the processing efficiency, ensure the flatness of the workpiece, roughness.

Base Data

Main Specification
Items	Name	LC-1060NC
Cutting capacity	Control axis number	3
	Cutting capacity mm	5
	Length*width*Height mm	1000*600*500mm
Worktable	Dimensions mm	1000*600
	Max loading weight kg	3000
Spindle	Spindle speed(Infinitely variable speeds) rpm	0-500
	Spindle power kw	15
	Spindle taper	BT50(7:24)
	Spindle speed sections (Manual)	/
	Cutter diameter mm	250
XYZ axis	X/Y/Z axis motor power kw	Same 3KW/15N.M
	X/Y/Z Max feed speed m/min	8/5/3
	X/Y/Z work range mm	/
	X/Y/Z Max cutting speed	5M/Min
Accuracy	Accuracy for dimension mm/300mm	0.03
Tank capacity	Hydraulic oil tank L	/
	Lubrication oil tank L	20
Power	Power	AC440V±10%, 24KVA
Net weight	Machine net weight KG	7000
Product size	Product size	L5000*W2000*H2700mm

Main parts
Sort	Name	Quantity	Size	Origin
Machinery	Ball screw (XYZ axis)	3	XZ-R5010 Y- R4010	Taiwan TBI
	Guide rail	3	/	Domestic
	Main Spindle (Vertical)	1	Gearbox 1:6	Taiwan ENLOG
	Flexible stainless steel plate shield of worktable	2	SPCC	Domestic
	Base casting	1	/	HT300
	Automatic lubricating machine	1	1/4HP Pump	Domestic
	Oil line	N	4/6	Domestic
	Bearing	/	/	Japan NSK
Electrical appliances	CNC system	1	E80/EJ	Japan Mitsubishi
	MPG	1	HC121	Japan Mitsubishi
	Servo motor	3	/	Japan Mitsubishi
	High precision electromagnetic table	1	1500*800mm	Taiwan Brand
	Spindle motor	1	15KW-1500rpm	MK
	AC contactor	/	/	Schneider
	Relay	/	/	Schneider

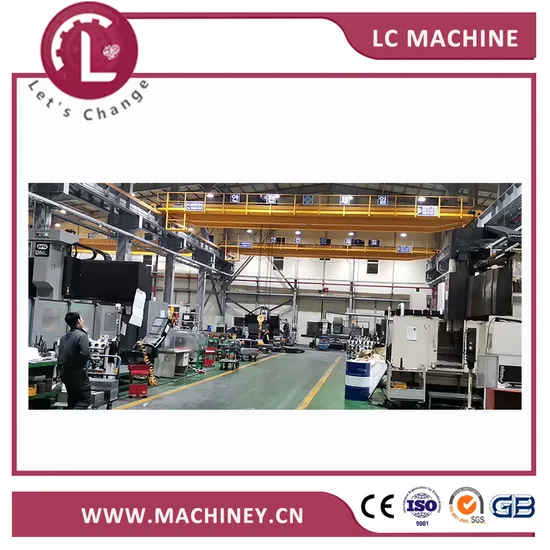

Manufacturing

Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION


Company Profile Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.


After-Sale Service

1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.

FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory. Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.

---
