Sprinkler Fire Fighting System Fire Sprinkler Fittings

Product Description

Product Description Pendent and upright and conventional and sidewall sprinklers are designed for use in automatic sprinkler systems designed in accordance with standard installation (NFPA13). The temperature response is standard response 5mm glass bulb and fast response 3mm glass bulb. The sprinklers come with compact design. available in different finishes and temperature ratings. The sprinklers body is made of brass die-casting copper alloy (DZR). The spring seat consists of a spring Belleville washer coated on both side with a Teflon tape. Pendent and conventional and sidewall sprinklers are installed with adjustable or non-adjustable escutcheon plates. These are intended to be installed finished ceilings. Escutcheon plate adjustment provides convenience in pendent and conventional sprinkler installation in case of areas with finished ceiling or walls.

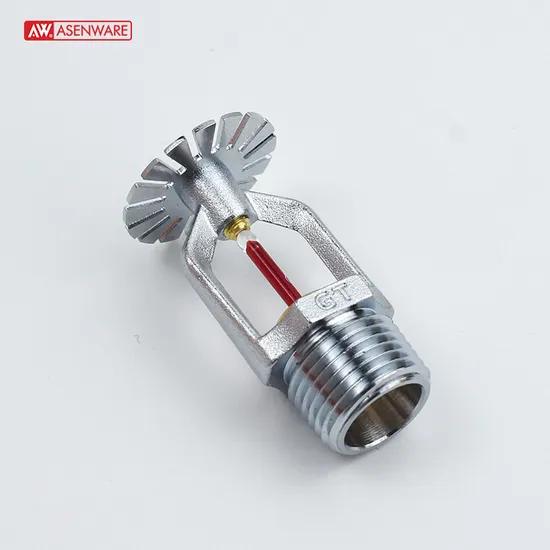

Detailed Images
Standard respone Quick respone K Factor 5.6 (80) Size Information TECHNICAL SPECIFICATION

Style	Pendent, Upright, Sidewall, Conventional and Recessed Pendent, Recessed Sidewall, Recessed Conventional
K Factor gpm/(psi)½( L³/min(bar)½ )	5.6 (80)
Nominal Thread Size	1/2" NPT AND 1/2" BSPT
Max. Working Pressure	175 PSI (12BAR)
Factory Test Pressure	500 PSI (35BAR)
Min. Operating Pressure	7 PSI (0.5 BAR)
Finish	Brass and Chrome Plated and White Plated Available

Material Specification

Deflector	Brass UNS-28000
Bulb	Glass with Glycerin Solution JOB G5 or Day-impex-937 for Ut0001, Ut0003, Ut0005, Ut0007 JOB F3 or Day-impex-941 for Ut0002, Ut0004, Ut0006
Load Screw	Brass UNS-28000
Seal	Brass UNS-28000
Frame	Brass UNS-28000
Seal Washer	Belleville Washer coated on both sides with Teflon Tape
Bulb Nominal Diameter	Standard Response 5.0mm, Quick Response 3.0mm

Company Introduction Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects. We are professional do fire alarm products about 16 years in China. Our fire safety products, solutions, and services are used in over 100 countries.
Product range:
1. Addressable fire alarm system (LPCB approved)
2. Conventional fire alarm system (LPCB, Intertek approved)
3. Addressable fire telephone system
4. Voice evacuation control panel and speakers
5. FM200 gas fire suppression system
6. Emergency light system (TUV approved)
CERTIFICATE
Transportation
Contact Details Contact:Iris Huang

---
