High Performance Gnss Rtk Foif A90 with 800 Channels and Imu Tilt for Construction Survey

Product Description

Hot Sale Fiof A90 GPS GNSS RTK with Tilt Survey English system
fiof A90 gps rtk with ce certification FOIF agent.
fiof a90 n90 gps system for land survey Key features:
1.MULTI CONSTELLATION
Support multiple satellite constellations.
All GNSS signals (GPS,GLONASS,BEIDOU and GALILEO) are included, no additional cost.
2.WEB UI CONTROL
To initialize, manage the settings of the receiver and to download data using laptop or PC,smartphone or tablet with WI-FI capability.
3 ELECTRONIC BUBBLE,with IMU MODULE
RTK fusion Real-time tilt survey
RTK fusion is new technology which combines GNSS with GYRO sensor, accelerometer sensor, magnetic sensor and thermometer sensor to provide real-time tilt survey.
The calibration is simple and can be done within one minute.
4 INTELLIGENT BATTERIES
The dual slot for two smart hot swappable batteries gives you up to 12 hours using the integrated UHF radiomodem. The power level can be checked and seen on the controller or directly on a led bar on the battery.
5 RUGGED RTK
With IP67 Certification Foif N90 will ensure operations in various kinds of extermely tough environments.

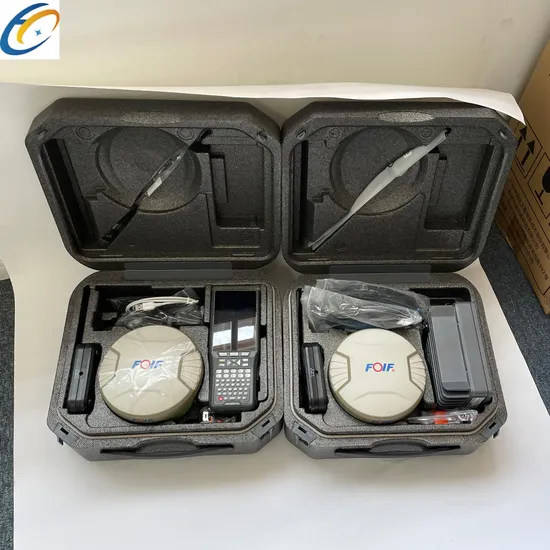

Product Show:

Specifications:
channel	550 channels
GNSS Singal Track GPS	L1,C/A,L2E, L2C, L5
GLONASS	L1,C/A,L1P, L2,C/A ,L2P,L5;
BDS	B1 B2 B3
SBAS	(WAAS,MSAS,ENGOS)L1,C/A,L5;
Galileo	-A\B L1 BOC(CBOC)-E5A/B, E5AltBOC
	RTCM2.3, RTCM3.X, RTCM3.2, CMR, CMR+
Receiver accuracy
Static post processing accuracy	H:±2.5mm+0.5×10 ·D;V:±5.0mm+0.5×10 ·D
RTK Positiong accuracy	H: ±8mm+0.5×10 ·D; V:±15mm+0.5×10 ·D
Code different positioning accuracy	0.45m
Single point positioning	1.5m
DATA LINK
TX/RX Radio	Internal radio RX/TX 5KM-10KM
External radio	FOIF external radio Rx & Tx(FDL-5, 2/35W selectable)
	50KM WORKING RANGE
WIFI	WIFI connect controller
	WEB UI wireless management
	GNSS upgrating/downloading/setting/base&rover
	configuration
3G/4G	GSM/GPRS/EDGE (class 10)
	Quad-band
	-GSM/GPRS: 850/900/1800/1900MHz band
	CDMA(Optional)
OTHERS
Battery	7.2V 3400mAh 2pcs standard;
	Indicable for volumn
	Compatible with controlle battery;
Display	4 led light;
	1 button key;
	Voice
NFC Survey	Internal electrical Bubble;
	Capacity for second general NFC Survey
Memory	4G
Interface	RS232*2 / Bluetooth *1 / USB*1 SIM *1 /
	TF*1 / Internet *1
Anti-dust & Anti-water	IP68
Temperature	working model:-40ºC~+80ºC
	store model:-55ºC~+85ºC

Product: Our services: 1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free from maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
4.we can providing instrument technology training Packaging & Shipping We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS,China Air Post.
You can also choose your own shipping forwarder. About payment: Generally, we accept Trade Assurance, Irrevocable LC at sight, Advance T/T, Escrow and West union.If you prefer other payment terms, please let us know.

---
