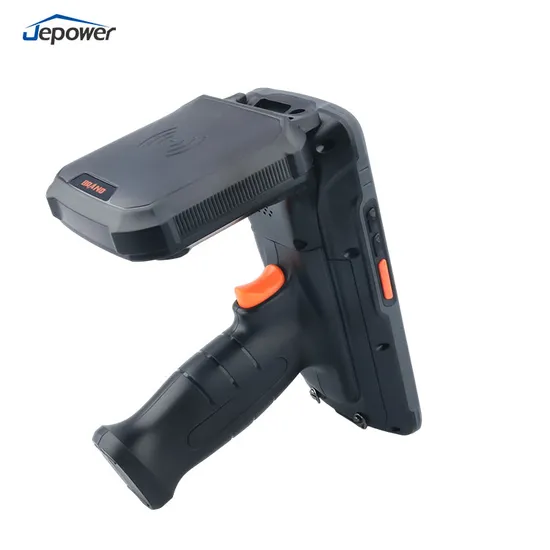

Jepower Android Rugged Handheld RFID Reader for Industry Data Collection

Product Description

Product Details
Product Parameters

PHYSICAL CHARACTERISTICS
Dimension and Weight	Size:170.2 x 78.0 x 23.3 mm Weight :less than 425g(depending on equipment function configuration.
Display and Touch Panel	5.5'' inch screen (1440*720)Resolution
Power	Main battery: Li-ion, rechargeable, 4.35V 9000mAh Removable Standby time > 350H Working time >14H Charging time <5H(use standard charger)
Expansion Slot	Nano SIM card slot*2 ,TF card *1 (256GB Max),
Interfaces	Type -C USB *1 ,Support OTG function ,POGO Pin x 1
Audio	Speaker (mono), microphone, receiver
Keypad	1 power key,3 scan keys,2 volume keys,1 PTT key,1 menu key,1 return key
AC Adapter	Input: 100V-240V, 50-60Hz ,Output: 5V-2A/9V-2A
Sensor	Gravity sensor, light sensor, distance sensor, gyroscope, electronic compass, vibration motor
PERFORMANCE CHARACTERSTICS
CPU	Cortex-A53 2.0 GHz Octa-core
Storage	RAM+ROM: 3GB+32GB/4 GB + 64 GB (optional)
Operating System	Android 11
USER ENVIRONMENT
Operating Temp.	-20°C to 55°C
Storage Temp.	-25°C to 70°C
Humidity	5%RH - 95%RH non condensing
Drop Specifications	6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature
Sealing	IP67
DEVELOPING ENVIRONMENT
SDK	Software Development Kit
Language and Tool	Java,Eclipse / Android Studio
DATA COMMUNICATION
WWAN	4G:TDD -LTE (B38/B39/B40/B41) FDD-LTE (B1/B3/B5/B7/B8/B20)
	3G:WCDMA 850/900/1900/2100MHz
	2G: GSM/dege/GPRS 850/900/1800/1900MHz
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
BT	BT5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
BARCODE READER(default)
2D imager scanner	Minde 660 Zebra: SE4710;	PDF417,MicroPDF417,GS1Composite,Aztec Code, Data Matrix,QR Code,Micro QR Code, MaxiCode, Hanxin Code,etc UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
CAMERA
Resolution	13MP autofocus rear camera with flash, 8MP front camera(optional)
NFC (OPTIONAL)
NFC	Frequency	13.56MHz
	Protocol	Support ISO14443A/B, ISO15693 agreement,2-5cm
	R/W Range	0-13m(tags and environment dependent)
ACCESSORIES
Standard	AC Adapter,USB cable,Protective film,User manual

Our advantages FAQ 1. who are we?
We are based in Guangdong, China, start from 2006,sell to Domestic Market(30.00%),North America(10.00%),Africa(10.00%),South America(8.00%),Mid East(8.00%),Eastern Europe(7.00%),Southeast Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Oceania(3.00%),Southern Europe(2.00%),Eastern Asia(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
PDA/Pos Machine
4. why should you buy from us not from other suppliers?
We have 20 years' industry experience | OEM/ODM services. We have manufacturing workshops and modern production lines. We have a complete quality control process for every step. We have garnered more than 50 patents. We have good after-sales service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
