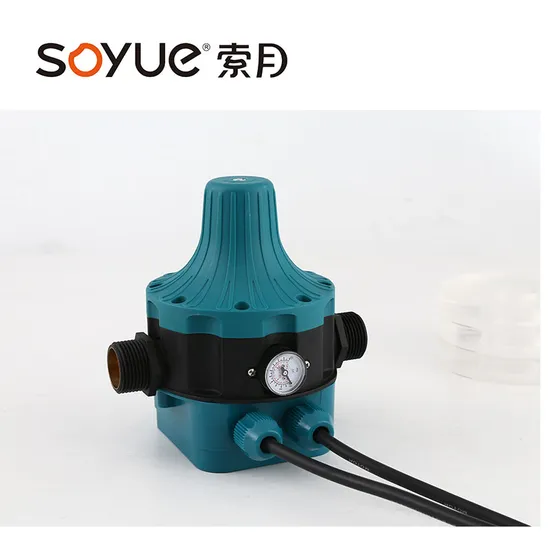

Pressure Switch Pump Control for Home-Using Water Pumps

Product Description

Details&Functions:
Automatic Pump control mady by POLYAMIDE /NYLON /METAL
1. Plastic part: new material no recycling, PA6 +GF30%
2. PS05-1A with or without adjustable pressure rod,regular panel
4. Interface thread size: G1"
5. Threaded interface easy to install
6. Body is firm and watertight to protect the circuit board inside
7. Color can be customized
8. Different Cable length can be selected
9. Maximum operating temperature:60/100 degree
10.Delay startup
11.Dry running protection
12.Automatic restart
13.Stup water supply and stop the machine
14.Flow control
15.Machine Crash Protection
16.Overload Protection
https://be469fc6b451ed56.en.made-in-china.com/product-catalog/Electrical-Control-System-1.html

Technical Date:

Rated voltage:	110V/220V/85V-285V
Maximum current:	10A/20A/30A
Frequency	50/60Hz
Maximum power	1.1kw/1.8kw/2.2kw
Interface thread	G1"
Start pressure	1.0Bar/1.5Bar/2.2Bar/1.0-2.5Bar/2.5-4.0Bar
Maximum working pressure	10Bar
Protection grade	IP65

Packing Size:

Model	Packing	Size	G.W./N.W.(KGS)	Loading
PS05-1A	12pcs/ctn	60x46.5x20.5	15.7/14.7	40ft HQ:14200pcs,20ft:5800pcs
PS05-1B	12pcs/ctn	60x46.5x24.5	15.7/14.7	40ft HQ:11900pcs,20ft:4800pcs

FAQ:
1. How about the brand packing?
When the MOQ above 1000pcs can do brand/ logo packing,less than 1000pcs suggest using Neutro-packing.
2. How about the Warranty?
One Year.
3. How to get the accurate quotation?
Leave the message with yr requestment,or send the mail directly to get the accurate price
4. Do you have any certifications?
We have ISO9001, CE.
5. How abou the payment?
L/C, T/T, D/P at sight.

---
