Product Description
Product Description

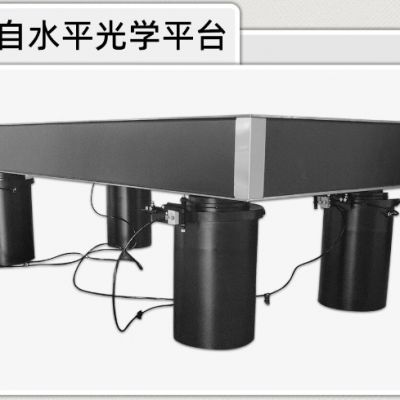

Structure: Automatic inflatable airbag self-leveling + three-layer sandwich honeycomb structure
Top: 6mm thickness 430icr17 high-permeability magnetic stainless steel, surface of the sub-light treatment to do midi grain (to avoid table reflection)
Internal support: steel honeycomb support structure + high composite rubber pad, can control vibration response to a greater extent
The bottom: 4 ~ 6m thick carbon steel, internal rust paint, surface spray black plastic treatment
Side plate: the inner carbon steel plate, the outer layer for the black aluminum plate, beautiful and practical, four corners with stainless steel plate wrap angle
Flatness: 0.02 mm/600mm * 600mm, higher than similar products at home and abroad
Automatic Balance: automatic inflation, automatic balance, short response time, fast balance speed, scientific research-grade air flotation vibration isolation optical platform
Natural Frequency: Vertical 1.0 ~ 1.5 Hz; Horizontal 1.0 ~ 1.5 Hz, with the load and the actual use of the situation related
Amplitude: S1UM
damping efficiency: X Direction & LT; 5 Hz: 88% ~ 94% ; y direction & LT; 5 Hz: 86% ~ 92% ; x direction & LT; 10 Hz: 92% ~ 98% ; y direction & LT; 10 Hz: 90% ~ 95%
Positioning accuracy: ± 0.05 mm
air floating support: 6-point gas vibration isolation device support system, two-layer Air Chamber, 3 level control valve automatic, automatic balance with Gas Jing Air Compressor
Silent Gas Pump: Exhaust Volume: 20L/min; exhaust pressure: 0.7 mpa; voltage frequency: 220v50HZ
Operating Noise: 40 db
Aperture: 25mm * 25mm
Aperture: Aperture: M6 national standard metric thread
Countertop thickness: 50mm/100mm/200mm/300mm (other thickness can be customized) weight: 50mm (length * width * 120kg)100mm (length * width * 135kg)200mm (length * width *150kg)
Load: 800-5000kg
Custom Shape: custom style including special fixed screw hole different shape to achieve customer needs
>>
