Product Details
Product Description
Product Description

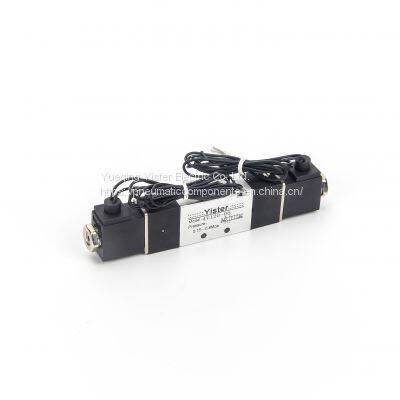

4V110 Series pilot type solenoid air valve
Order code for 4V110-M5
Symbol for 4V110 solenoid air valve
Technical parameter
Model
| 4V110-M5
| 4V120-M5
| 4V130C-M5
| 4V130E-M5
| 4V130P-M5
| 4V110-06
| 4V120-06
| 4V130C-06
| 4V130E-06
| 4V130P-06
|
Fluid
| Air
|
Acting
| Internal pilot
|
Valve type
| 5/2 way
| 5/3 way
| 5/2 way
| 5/3 way
|
Orifice size
| 5.5mm2
| 5mm2
| 12mm2
| 9mm2
|
Lubrication
| No required
|
Port size
| In=out=M5
| In=out=G1/8''
|
Protective class
| IP65
|
Pressure range
| 0.15-0.8MPa(21~1145Psi)
|
Proof pressure
| 1.2MPa(170psi)
|
Material of body
| Aluminum Alloy
|
Temperature
| -5℃~60℃
|
Response speed
| <0.05s
|
Dimension for 4V210 4V310 4V410 Solenoid valve
Feature
* Airtac Type Air Pneumatic Control Solenoid valve 4V110,4V210,4V310,4V410
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
>>
