Sud250h Hydraulic Butt Fusion Welding Machine/PE Butt Fusion Welding Machine/HDPE Pipe Welding Machine/ HDPE Pipe Jointer/HDPE Pipe Welder Good Quality

Product Description

SUD250H hydraulic butt fusion welding machine/pe butt fusion welding machine/hdpe pipe welding machine/ hdpe pipe jointer/hdpe pipe welder good quality Brief:
Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.

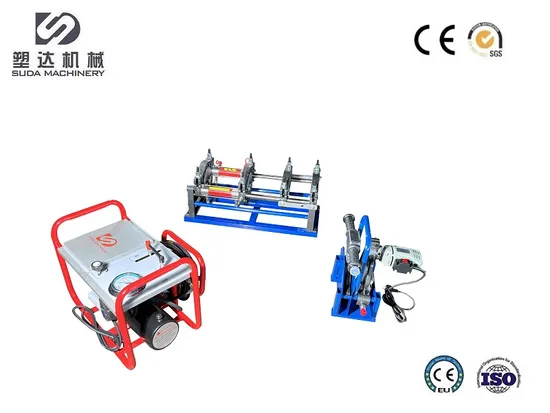

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.
Feature:
1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.
SUD250H Specification

Model			SUD250H
Welding Range(mm)			50 63 75 90 110 125 140 160 180 200 225 250
Heating Plate Max.Temp.			270ºC
Temp.Deviation in Surface			≤±5ºC
Working Voltage			220V 50/60HZ
Heating Plate Power			2.1KW
Planning Tool Power			1.1KW
Hydraulic Unit Power			0.75KW
Total Power			3.95KW
Weight			180KG
Packing		Wooden Box	2 Wooden Boxes
		Volume	0.7CBM

Products Pictures
Basic Frame:
Incoulds :
1.Quick Connector:using flat type, good sealing( Others use notched joints, easy to leak oil), insulating material, use safety
2.High Pressure Tubing: high-quality material, oil-resistant and high-temperature resistant, anti-aging, soft and flexible, weather resistant, not hard in winter, external sleeve has a telescopic spring to protect it
3.Fasten Screws: aluminum alloy, corrosion-resistant, belonging to consumables (give 2 for free)
4.Pull Tab: thick, chrome-plated, no rust, improve stability
5.Separator Device of Heater: fix heating plate when basic frame seperating the melted pipe and easy to lift the heating plate ,improve working efficiency
6.Sealing Ring: durable, quality guaranteed, good sealing, fine polishing, smooth surface, no burrs, accurate size
7.Hydraulic Cylinder: aluminum alloy material, anti-oxidation, anti-corrosion, can withstand high pressure, with warning signs, use safety
8.Clamp: 4 cm clamp, aluminum alloy material, anti-corrosion, long service life, stable fastening, precision grinding, positioning pipe is accurate, easy to operate, clamps can be disassembled to handle different specifications of pipe fittings
Hydraulic Unit:
Incoulds :
1.Pressure Relief Valve
2.Reversing Valve
3.Pressure Regulating Valve
4.Pressure Maintaining Valve: all CE certified, with high stability and long service life
5.Pressure Gauge: sustainable pressure holding, sturdy and durable, good performance, pressure 0-16MPa, far exceeds the range of others (0-10MPa)
6.Oil Circuit Module: the material is aluminum, corrosion resistant, good circulation, light weight and long service life
7.Aluminum Shell Pure & Copper Motor: internal pure copper coil, energy-saving and durable, good stability, the shell is made of aluminum, impact resistant
Planning Tool:
Incoulds :
1.Blade: Carbon steel, strong and durable, double-edged edge, sharp blade, flattened pipe, and give a pair of blades for free
2.Trimmer Plate: The trimmer plate is made of aluminum, by die casting, the surface becomes smooth, durable and anti-corrosion.
3.Die Casting Handle: Through the overall die casting, the handle is integrated with the basic frame and is more sturdy
4.Pure Copper Motor: pure copper material(others are made of aluminum, easy to be burnt ),the outer casing is made of aluminum, impact resistant.
Heating Plate:
Incoulds :
1.Rubber Handle: Made of high quality rubber material (others rubber handles are hard and easy to break)
2.Temperature Sensor: Wuxi Sole temperature sensor (others are thinner and more susceptible to damage)
3.Heating Element: Jiangsu Brand, long service life
4.Special Treatment Screws: anti-corrosion
5.Socket Connector: Brand: Hualun. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage)
6.Special Treatment Radiator: After professional treatment, it has good heat dissipation, anti-corrosion and long service life
Support:
Incoulds :
1.Strengthening Treatment:The support reinforced with metal
2.Used for planning tool and heating plate
Heating Plate Cable:
Incoulds :
1.Copper Core Cable: High quality copper core cable, low resistivity, good ductility and long service life
2.Socket Connector: Brand: Hualun. High-quality material, insulation and flame retardant ,CE certification , can quickly connect the interface (others use the connector which internal plug is threaded , can not be quickly connected , and is easy to damage) Accessories Factory Processing Exhibition
Our Services
1.Sample Services:
Our factory can offer the samples before customers big orders,but customers need pay the samples cost and transport charges.
2.Products Services:
butt fusion welding machine we produce as flows:
1. Manual HDPE butt fusion welding machine from 63mm to 250mm for HDPE pipe.
2. Hydraulic HDPE butt fusion welding machine from 63mm to 1600mm for HDPE pipe.
3. Pipe cutting saws from 0mm to 1600mm for HDPE pipe.
4. Workshop HDPE Fitting machine from 90mm to 1600mm.
FAQ
1.Why choose us?
1)Genuine products with excellent quality and competitive price.
2)Cooperating with the customer all over the world and knowing the markets very well.
3)After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
2.Why our price very stable and competitive?
1)Our factory have ourselves meltshop, most parts of the body machines from ourselves factory, save the cost.
2)We have some big customers from Southeast Asia Market and Russia Market, every mouth have the stable machines export, keep our value of exports

---
