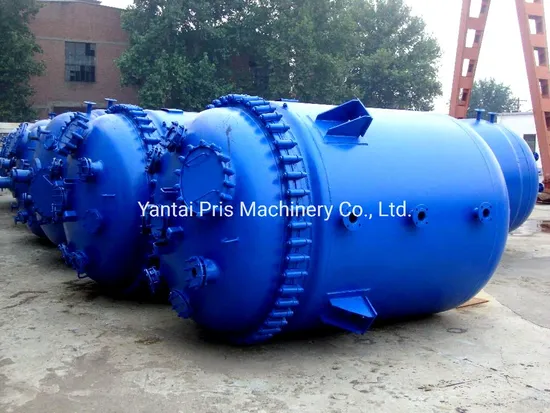

K Type Glass Line Reactor From 50L-80000L for EPC Production

Product Description

A special designed glass lined reactor specially developed by our company for preparing chlorinated polyethylene(EPC).
EPC usage glass lined reactor features:
1)The design structure of the glass lined reactor includes a base;
2)The four corners of the lower end of the base are fixedly connected with a supporting mechanism;
3)The upper end of the base is fixedly connected with the glass lined reactor.
4)Both sides of the upper end of the glass lined reactor are provided with feed channels;
5)A chlorine gas inlet pipe is provided on one side of the upper end of the glass lined reactor.
6)One end of the chlorine gas inlet pipe penetrates the side wall of the glass lined reacor and extends to the inside of the glass lined reactor.
7)The upper end of the glass lined reactor is fixedly connected with a rotating motor;
8)The end of the rotating motor output shaft penetrates the inner wall of the glass lined reactor and is fixedly connected with a rotating shaft;
9)The lower end of the rotating shaft is fixedly connected with a connecting plate.
10)The utility model has a compact structure, a plurality of stirring mechanisms are arranged in the glass lined reactor to improve the uniformity of stirring and
improving the reaction efficiency and the reaction effect.
K type glass lined reactor technical data:

No	Nominal capacity(L)	Actual capacity(L)	Heat exchange area(m2)	Motor Power (Kw)	Rotation Speed		Main Dimension(mm)									h		Wight (kg)
					Anchor/ frame	Turbine/Paddle	D	D1	D2	D3	H	H1	H2	H3	H0	Anchor/ frame	Turbine/ Paddle
1	K50	70	0.34	0.75	63rpm	85rpm	500	600	720	270	480	300	285	945	2030	50	90	330
2	K100	127	0.84	0.75			600	700	840	270	600	340	320	945	2170	60	110	430
3	K200	247	1.44	1.1			700	800	940	300	780	350	345	953	2440	60	130	530
4	K300	369	1.75	3.0			800	900	1040	350	800	380	380	1154	2770	80	150	595
5	K500	588	2.64	3.0			900	1000	1172	350	1070	480	405	1154	3030	85	160	655
6	K1000	1245	4.5	4.0			1200	1300	1478	400	1270	500	495	1276	3360	110	210	1331
7	k1500	1714	5.2	4			1300	1450	1655	400	1470	600	505	1276	3326	100	210	1623
8	k2000	2160	7.02	4			1300	1450	1655	400	1815	600	505	1276	3671	100	210	1931
9	K3000	3237	8.61	5.5			1600	1750	1960	450	1810	600	595	1316	3791	130	240	2638
10	K4000	4255	11.7	5.5			1600	1750	1960	450	2310	600	595	1316	4291	130	240	3225
11	K4000	4340	10.9	5.5			1750	1900	2152	450	2025	700	643	1316	4046	130	270	3500
12	K5000	5380	13.63	7.5			1600	1750	1960	450	2810	700	580	1316	4791	130	270	3850
13	K5000	5430	13.8	7.5			1750	1900	2152	450	2455	700	643	1316	4508	130	270	4046
14	K6300	6493	15.8	7.5			1750	1900	2152	450	2885	700	643	1395	5027	130	270	4626
15	K8000	8450	18.3	11			2000	2200	2457	510	2785	800	705	1545	5225	150	330	6368
16	K10000	10520	21.15	11			2200	2400	2708	550	3040	800	750	1770	5588	150	360	7655
17	K12500	13040	25.79	15			2200	2400	2708	550	3680	800	750	1770	6730	150	360	9173

Notes:
1.The enamel layer produced by our company can resist the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak bases.
2.This product is not suitable for hydrofluoric acid, fluoride ion-containing medium, strong alkali and concentrated phosphoric acid under specific conditions (concentration ≥30%, temperature ≥180 ºC)

---
