US$9.00-100.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Woven
Machine Speed
Below 2000m/Min
Paper Kinds
All Kinds of Paper
Srtucture
Woven and Needling
Transport Package
Standard Seaworthy Package
Production Capacity
50000sets/Year
Product Description

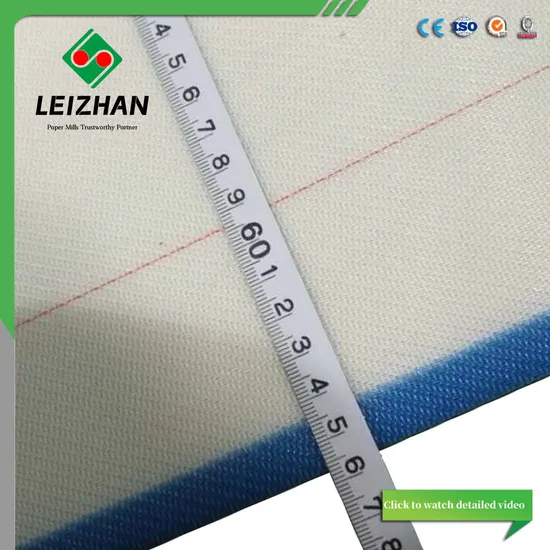

Product Description Round yarn dryer screen's application in paper machine:
It is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced.
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.
Detailed Photos
Product Parameters
| Polyester Dryer Fabric |
| Weaving Kind | Fabric Model | Wire Diameter mm | Density(root/cm) | Tensile strength(N/cm) | Air Permeability | Weight Kg/m2 | Thickness mm |
| Warp | Weft | Warp | Weft | Surface | Joint | Socket Screw-ring interface | M3/m2h | CFM |
| Round wire Dryer fabric | 22503 | 0.50 | 0.50 | 24 | 12 | 2000 | 1400 | 900 | 8000 | 500 | 1.06 | 2.0 |
| 24503 | 0.50 | 25 | 12 | 2000 | 1400 | 900 | 7000 | 438 | 1.10 | 2.0 |
| 22504 | 0.50 | 24 | 12 | 2000 | 1400 | 900 | 12000 | 750 | 1.26 | 2.1 |
| 24504 | 0.50 | 26 | 12 | 2100 | 1500 | 950 | 11000 | 680 | 1.3 | 2.1 |
| 4106 | 0.50 | 23 | 12.6 | 2200 | 1500 | 900 | 6800 | 425 | 1.2 | 1.75 |
| 4106-1 | 0.30 / 0.70 | 22.8 | 12.6 | 2200 | 1500 | 900 | 8000 | 500 | 1.3 | 1.80 |
| 26508 | 0.35 | 0.50 | 28 | 12.5 | 1680 | 1400 | 800 | 4640 | 290 | 0.82 | 1.1 |
