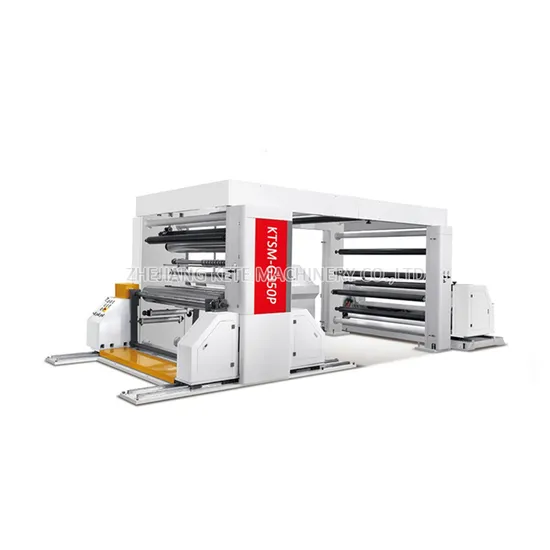

Gantry Slitting and Rewinding Machine Kraft Paper Slitting Machine Non-Woven Fabric Film Slitter Rewinder Machine

US$52,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

KTSM-G350P

Type

Roll Slitter

Work Method

Round Knife Cutting

Structure

Cutting Part

Packaging

Cartons

Classification

Large Size Paper Slitter

Applicable Process

Process Materials

Suitable Substrates

Paper

Packaging Material

Wood

Product Name

Paper Slitter Rewinder Machine

Keyword

Kraft Paper Slitter Rewinder

Keyword 1

Slitting and Rewinding Machine

Keyword 2

Slitting Machine Paper Roll

Keyword 3

Paper Roll Slitter Machine

Keyword 4

Paper Slitting Machine

Keyword 5

Slitter Rewinder Paper Roll Machine

Keyword 6

Paper Rewinder Slitter Machine

Paper Slitting

Yes

Gantry Frame Design

Yes

Round Slitting Knife

Yes

Roll to Roll Slitting

Yes

Unwind with Air Shaft

Yes

Rewind with Air Shaft

Yes

Unwind with Auto Loading

Yes

Transport Package

Wooden Pallet

Specification

8500x3500x2700mm

Trademark

KETE

Origin

China

Production Capacity

20 Sets/ Month

Packaging & Delivery

Package Size

850.00cm * 350.00cm * 270.00cm

Package Gross Weight

14000.000kg

Product Description

This High Speed Paper Slitter Is Suitable For Slitting Paper Jumbo Roll Materials From Big Size To Small Size, It Is High Effective Converting Machine For Paper Bag
Making Machine.
Ω Use Round Slitting Knife Ω With Auto Length Counting System Ω Unwind and Rewind with Tension Control Ω Unwind with EPC Control System Ω Unwind and Rewind use Air Shaft Ω Electrical Part use Schneider Brand Ω Unwind Shaft-less with Auto loading

Model	KTSM-G350P/ 1300	KTSM-G350P/ 1600
Max. Raw Material Width	1200mm (47.2")	1500mm (59")
Max. Unwind Diameter	Φ1500mm (59")	Φ1500mm (59")
Max. Rewind Diameter	Φ1200mm (47.2")	Φ1200mm (47.2")
Min. Slitting Width	50mm (1.97")	50mm (1.97")
Max. Slitting Speed	350m/min	350m/min
Error	<0.5mm	<0.5mm
Paper Core Inner Diameter	76mm/152mm (3"/6")	76mm/152mm (3"/6")
Total Power	52kw	56kw
Machine Weight	13000kg	14000kg
Machine Size (LWH)m	8500 x3200 x 2700mm	8500 x 3500 x 2700mm
Machine Power	3 Phase 220 / 380 / 440v 50/60Hz
