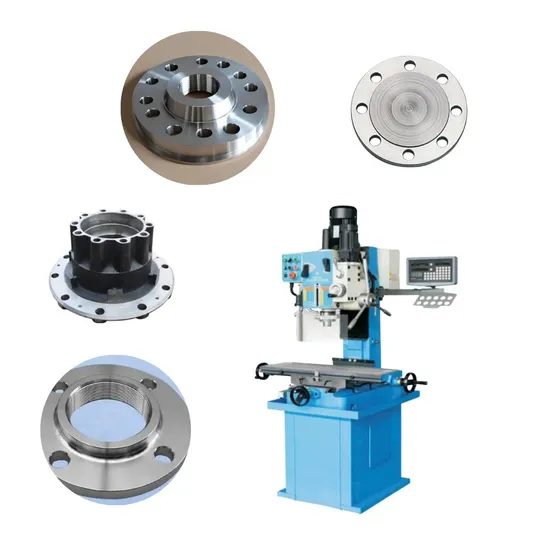

Double Head Drilling and Milling Machine with Digital Readout ZX7045C/ ZX7045C1

Product Description

Specification:

Model No.	ZX7045C	ZX7045C1
Moving
Max.Drilling Capacity	Steel 32mm Castings 45mm	Steel 32mm Castings 45mm
End milling dia	80 mm	80 mm
Face milling dia	28 mm	28 mm
Dimension spindle axis to column surface	260 mm	260 mm
Spindle
Spindle taper	MT4 or R8	MT4 or R8
Max.spindle travel	110 mm	110 mm
Spindle speed	50-1250 r/min	50-2500 r/min
Dimension of worktable	Standard 820×240mm Optional 730×240mm	Standard 820×240mm Optional 730×240mm
Worktable travel	Standard 540×170mm Optional 450×170mm	Standard 540×170mm Optional 450×170mm
Max.distance spindle nose to worktable	457mm	457mm
Other
Coolant pump power	40 W	40 W
Main motor power	Single-phase 1100w Three-phase 1500w	1300/1800 w
Feed motor power	90 w	90 w
Feed speed rate	8-95 mm/min	8-95 mm/min
N.W/G.W	330/375 kg	330/375 kg
Packing dimension	108×92×124 cm	108×92×124 cm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
