Basic Info.
Power Supply
Hydraulic Pressure
Riveting Capacity
M12 Nut M10 Stud M6 Standoff Carbon Steel
Power
380V 3 Phase 5 Core 50-60Hz
Size
47"*66"*92"(1200*1700*2350mm)
Transport Package
Wooden Box
Specification
1200*1700*2350mm
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
1300.00cm * 1800.00cm * 2500.00cm
Package Gross Weight
1150.000kg
Product Description
Product Features

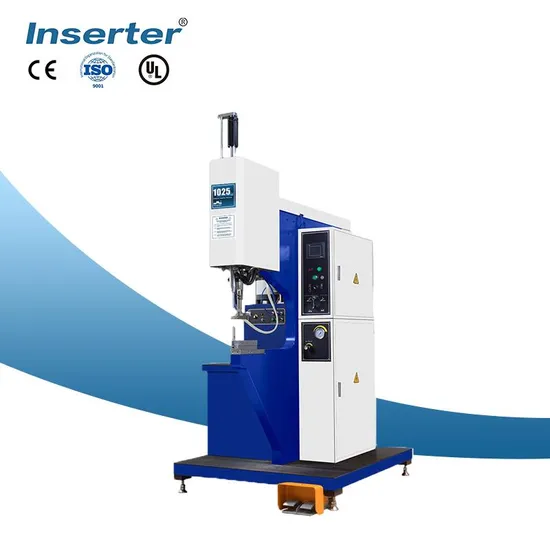

- 1025PLUS 10 ton (97KN) ram force, 25 inch(650mm) throat depth. Dual pump 200mm/s equipped with PLC control system and safety system.
- Dual pump hydraulic system (200mm/s).
- Easy Operation:Proprietary stress test adjustment button, allowing you to find the right riveting pressure within 10 seconds. Ram force repeat accuracy ±1%
- Laser locating. Assist to hardling the big warkpiece to cover lower tool by laser locating light refeence.
- Safety System:Making the operator to full protection on the conductive non-conductive work mode.which greatly enhanced the confidence and plua efficiency for e operator. No security risks.
- 100% Safety svstem
- PLC Programming
- Automatic Feeding System Product Parameters
Model
| 1025PLUS
|
Force
| 6KN - 97KN
|
Throat Depth
| 650mm
|
Throat Height
| 450mm
|
Stroke
| 200mm
|
Riveting Capacity
| M12 nut M10 stud M6 standoff carbon steel
|
Main Power
| 3KW
|
Current
| 8A
|
Hydraulic Oil
| 46#/32#
|
Oil Tank Reawevoir
| 70L
|
Air Pressure
| 0.4-0.6Mpa
|
Power Supply
| 380V 3 phase 5 core 50-60HZ
|
Package Size
| 47"*66"*92"(1200*1700*2350mm)
|
Weight
| 1100kg
|
FAQ
1. Who are we?
A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern
Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office.
2.Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation.
3.Which shipping way can you provide?
A: We can provide shipping by sea, by air, by express and etc according to customer requirements.
4.How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
5.Do you have an inspection procedure for the product?
A: Yes, We have a strict inspection of product quality and packing.
>>
