Portable Corn and Grain Extruder Soybean Bulking Machine

Product Description

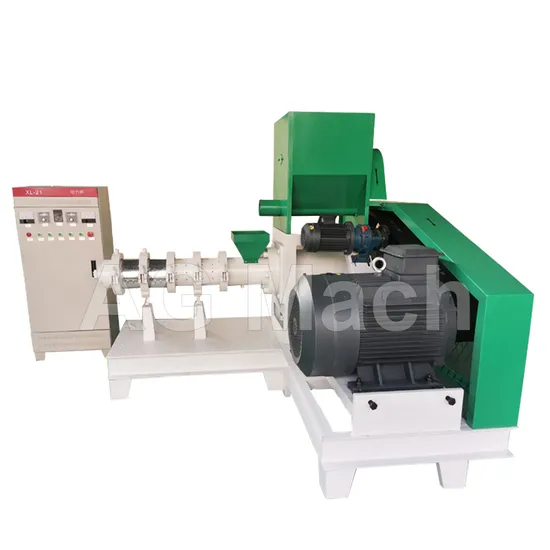

Portable Corn and Grain Extruder Soybean Bulking Machine
Product Description
The DGP series of large and medium-sized dry feed extruder is carefully designed by adopting the advantages of domestic and foreign models and integrating a number of technological innovations. This machine adopts a combined main shaft, which can be adapted to the puffing processing of different materials and processing whole corn and soybeans. The supporting facilities are simple and the operation and maintenance are convenient. The main motor can be Siemens to ensure product quality.
The processing conditions of the dry extruder and the wet extruder are easily interchangeable, and the screw sleeve adopts an inlaid alloy steel bar structure, which has a longer service life.
It is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.
Product Parameters

Model	Capacity for soybean (kg/h)	Capacity for corn/maize (kg/h)	Screw diameter (mm)	Main Power (kw)	Feeding Power (kw)
DGP-70B	200	180~200	Φ70	18.5	0.4
DGP-80B	200~300	200~250	Φ80	22	0.4
DGP-90B	350~400	300~400	Φ90	37	0.6
DGP-120B	500~600	500~550	Φ120	55	0.6
DGP-135B	800~900	700~800	Φ135	75	0.8
DGP-160B	1000~1200	900~1000	Φ160	90	1.5
DGP-200B	2000	1800~2000	Φ200	132	1.5

Detailed Photos
Spare Parts
Our Advantages
1. The Full fat soybean extruder machine uses modular spindle, can be adapted to different materials Extruding processing, whole grain corn and soybean processing facilities is simple, easy operation and maintenance.
2. novel design, high output, stable operation, the main components is heat treated special alloy material refined, with a?high degree of wear resistance, long life and other characteristics.
3. Extruding (whole corn) raw materials, and easy operation and maintenance, suitable for small feed mill and the majority of farmers' special use.
4. The screw and sleeves using a?inlaid alloy strip structure, longer life.
5. The Full fat soybean extruder machine Widely used in expansion of soybean, corn, suckling pig feed materials and other livestock and poultry feed, rice bran preservation, cottonseed meal, castor meal detoxification, it is the ideal choice tool for feed processing enterprises.

Processing
Application

Packaging & Shipping

---
