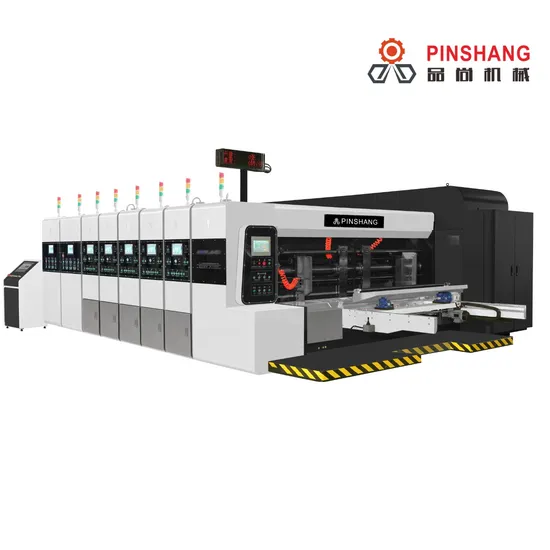

Automatic Flexo Printer Slotter for Corrugated Carton-Making Machine
| Gearbox 4 shafts automatic lead edge feeder. |
| Printing cylinder and slotting shaft phases adjusted by servo motors. |
| 45# steel frames, thickness 50mm. |
| Main transmission gears with 20CrMnTi alloy materials. Hardness 58-60 degree |
| Printing units are equipped with vacuum transfer. |
| Eight shafts slotter design, pre-creaser first, creaser second, creaser third, slotter. |
| Inverter motor speed compensation system from die cutter unit. |
| The main motor has a start delay protection function. It will not work if all units are not locked and closed. |
| Automatic all machine units in 1 press. |
| PLC remote control system can be managed and checked on the internet. |
| 9000 order memory system with computer operation system. |
