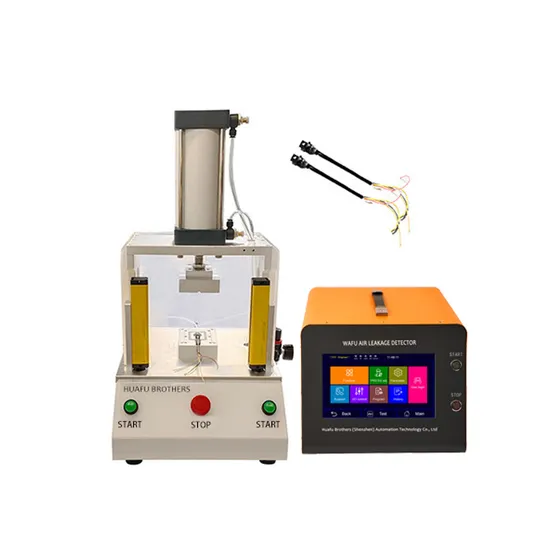

Wire Harness Air Tightness Leakage Test Equipment Rapid Air Leak Testing Instrument

Product Description

Product Description
WAFU series air tightness detector water leak tester adopts the principle of direct pressure and uses air as the medium to pick up the leakage of the product. It is a non-destructive testing instrument. The working principle is to inflate or exhaust the test product to the specified air pressure, then close the valve, after a period of stability, measure the change of air pressure during the test period, calculate the leakage through conversion. With its high precision and complete function, this instrument is widely used in sealing testing of open products or parts of closed products.
Testing Ways: selecting according to your product type
Air Pressure Attenuation Method:
Testing by Filling Air: suit for tested pressure is ≥0pa.Testing with Vacuum: suit for tested pressure is <0pa.Testing by Contrasting: it needs a reference. Then comparing the reference with the tested product.Test Leakage :
Test the leakage of tested product by inflating air.
Detailed Photos
Product Parameters

Name:	WAFU Water/Air Leak Tester	Test Pressure:	-85Kpa to 1600Kpa
Test Time:	5s to 999s	Leakage Unit:	Pa, ml/min, ml/s, ml/h, pa/s,cc/min,SCCM,KPa,ml
Test Precision:	0.1%FS	Resolution:	1Pa
Touch Screen:	10inch	Test Pressure Source:	dry clean air
Test Record:	100,000 groups	Test Parameters Storage:	100 groups

Packaging & Shipping
In order to better protect the product, we use wooden case when shipping to ensure that the product will not be damaged during transportation.
Company Profile
Our Advantages
1. OEM/ODM: the equipment is customized for your products, such as testing Measuring Range, Leakage Rate, Test Channel all are customized for your products. We will do everything we can to help you quickly start your usage.
2. Powerful Factory: independent R&D and production. Production capacity 100/month.
3. Quality Guarantee: the equipment is with 1 year warranty. Great & Professional after-sale team to help you to solve problems.
4. Good Transport: packed with wood cases.

---
