0.8t 1.6t 3.2t Wire Rope Pulling Hoist,

Product Description

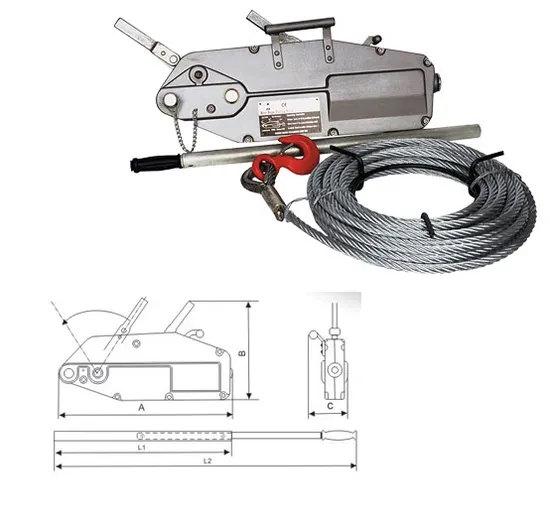

Product Description Wire Rope Pulling Hoist / Tirfor
* Small-sized, compact, hand-operated lifting tool
* Housing made of aluminum alloy
* Capacity: 0.8t×20m, 1.6t×20m, 3.2t×20m, 5.4t×20m. wire rope length can be customized.
* All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
* Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
* Overload protection ensures personal safety in operation.
* Built-in shear pins can be replaced without removing the load.
* High quality aluminum body
* Overload protection
* Light in weight, convenient to carry,portable electric winches
* Handle length is adjustable, so it is very convenient to regulate the hand force according to the lifting force.
* Widely used for lifting, pulling, tensioning, and tightening in many areas
* Easy operation, convenient maintenance

Model	HX-800	HX-1600	HX-3200
Rated capacity (kg)	800	1600	3200
Rated forward hand power N	343	441	441
Rated forward travel mm	> 52	> 55	> 28
Rope diameter mm	8.3	11	16
load capacity	5	5	5
Load capacity	5	5	5
Max traveling load kg	1200	2400	4000
Net weight (kg)	6	11	22

Product Show
1. Specification
1)Capacity from 0.8T 1.6T 3.2T 5.4T
2)High quality aluminium body
3)Overload protection
2. Features
1)handle length is adjustable, so it is very convenient to regulate the hand force according to the lifting force.
2)Widely used for lifting, pulling, tensioning, and tightening in many areas
3)Easy operation, convenient maintenance
4) ISO, CE certificate

---
