Horizontal Food Grade Mixer Food Powder Baking Low Gluten Flour Egg Mixing

Product Description

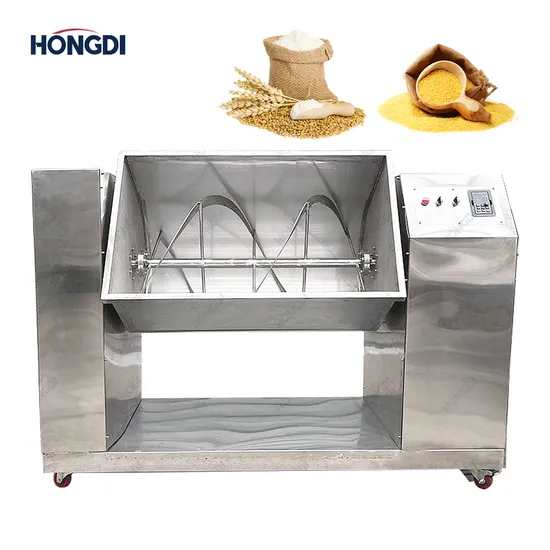

Stainless steel U-type mixer is a kind of machine to mix two ormore powdery materials evenly, Its driving spindle is arranged withdouble-layer screw blades, the outer blades convey the materials tothe center, and the inner blades convey the materials to the outsideThe motor and the mixing spindle are directly connected through thecycloid reducer, It is suitable for solid-solid (i.e. powder and powder)mixing in food, chemical industry, feed, ceramics, retractory puttypaste, real stone paint, dry powder, putty and so on.

Detailed Display

Double screw belt mixing blade
By rotating, the material is flipped, mixed, and sheared in a U-shaped mixing tank to achieve uniform mixing of the material.Thickened barrel
Made of high-quality stainless steel material, it has high wear resistance and corrosion resistance,which can extend the service life of the equipment.Multi-function control system
The machine can be controlled by push button to realise the functions of screw belt forward and reverse, cylinder tilt, frequency conversion speed regulation and so on. It is convenient for workers to operate.Auxiliary deflector
When the barrel is tilted, the material inside the barrel will flow out along the deflector plate, which is convenient for the next transfer or packaging of the material, etc.

Product Parameter

Double Screw Belt Mixer Parameter Information
model number	cylinder L W H (mm)	synthesis L w H(mm)	motor power(kw)	effective mixing volume(L)
HDJX-100	875*500*525	1780*559*912	1.5/2.2	170
HDJX-200	1150*600*695	2016*724*1249	3	430
HDJX-300	1320*760*790	2298*846*1424	3	580
HDJX-500	1550*850*900	2563*958*1624	5.5	880
HDJX-1000	1890*1050*1200	3500*1158*1950	7.5	1600
HDJX-2000	2200*1250*1450	3900*1400*2350	11.5	2700

Product Photos

FAQ

Q 1: Where is your factory located?
A 1: Our factory is located in Zhengzhou, China. If you have travelling plans, we warmly invite you to visit our factory.
Q 2: Why do you choose your products?
A 2: We have 15 years of professional production experience, professional team and advanced equipment. Product quality is guaranteed and price is favourable.
Q 3: After receiving the machine, is there any installation instruction? How long is the warranty period?
A 3: Yes, we have a professional after-sales team that will promptly solve any problems you encounter during installation and production. We provide one year warranty service.
Q 4: What are the transport methods for the goods?
A 4: The common transport modes are sea transport, air transport, land transport, etc. You need to choose the suitable transport mode according to the nature of the goods, quantity, delivery date and other factors.

---
