Sharey 1000W, 2000W. 3000W Pipe Laser Cutting Machine Fiber Laser Tube Cutting Machine

Product Description

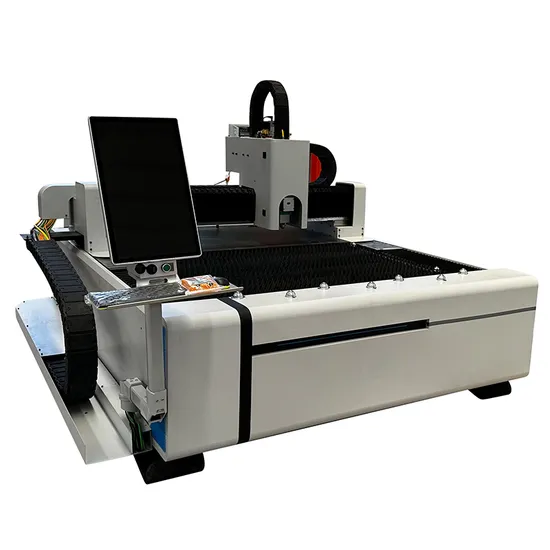

Open-Type Double- Drive Fiber Laser Cutting Machine
Feature of laser cutting machine
The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming Imported high precision ball screw transmission / rack & pinion, high precision linear guide railImported servo motor and drive, imported high-rigidity precision gearbox. Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area Modular structure of laser generator, high performance and free from maintenance Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
Adopting World Famous Germany Dlaser Fiber laser source and USA Laser Mech cutting head & Dynamic Focus System, it can cut and punch different kind of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjusts the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing
Main Machine Show
Technical Parameters

Code name of width	3015
Maximum material width (mm)	3000×1500
X axis travel (mm)	1520
Y axis travel (mm)	3020
Z axis travel (mm)	80
X/Y axis positioning accuracy	±0.05mm/m
X/Y axis repeat positioning accuracy	≤0.04mm
Maximum positioning speed	140m/min
Maximum acceleration	1.2G
Slit width	0.1-0.5mm(Measured value below 3mm thickness)
Incision roughness	Ra3.2-Ra25.4(Measured value below 3mm thickness)
Maximum cutting thickness range	Refer to the craft parameter table
Minimum setting unit	0.001mm
Floor area of machine tool (mm)	6000×3000
Host volume (mm)	4850*2250*1700
CNC system	CypCut
Monitor	19″LCD
Transfer method	Gear rack dual drive
Maximum load-bearing capacity of worktable (tons)	1
Machine weight (tons)	3
Total installed power consumption (approximately)	Laser power:1000W		17kW
	Laser power:1500W		19.5kW
	Laser power:2000W		22kW
Power requirements	AC380V,50Hz;3P+N+PE
Total power protection level	IP54

Components Introduce Adopt Switzerland import lasercutting heads and a variety ofinterface settings, it can be usedwith a variety of fiber lasers.Optimized optical design with digitalheight sensor makes cutting moreefficient.The knob-type focus adjustment isconvenient and flexible
Japan Yaskawa servo motor(standard)
Japan Fuji servo motor(optional)
French MOTOVARIO Reducer (optional)

Japan SHIMPO reducer(standard)
Cutting Samples
Machine in Stock
Why Choose Us 1,Innovation Strength The R&D team, technical engineer team, and production design adopt advanced technology 2,Quality Control We have 50 professional equipment and advanced quality control processes to ensure that our products meet the requirements of CE international certification. 3,Quantity and Productivity With the help of modern automated production lines, our two factories have 300 well-trained employees and an annual production capacity of 500 units 4,Our Service Engineer's overseas service capabilities

---
