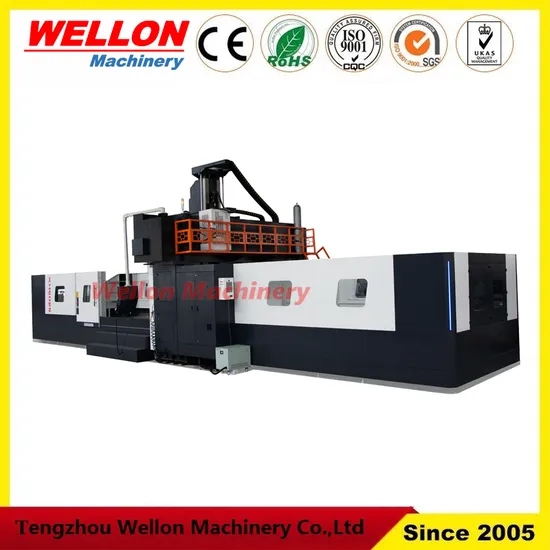

Xh4022 CNC Milling Machine Big Gantry/Gantry Type CNC Machining Center

Product Description

Detailed Photos

Product Parameters
The machine tool has the characteristics of high precision, high efficiency, and environmental protection, which is especially suitable for multi-variety batch precision processing. Its performance indicators and accuracy indicators are fully in line with national standards. The products are modularized and can be serialized and customized according to market needs. Its good performance-price ratio is the best choice for domestic and foreign customers.The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, three-coordinate linkage, etc. Mainly carry out numerical control processing of various basic large parts, plate parts, disc parts, shell parts, molds and other precision parts. It is suitable for aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries.
The fixed beam type gantry frame structure is adopted, the bed is fixed, and the double columns are bolted to the two sides of the bed. The worktable moves on the X axis on the bed, the spindle box moves in the Z direction on the saddle, and the slide saddle and the spindle box move in the Y direction on the beam.
The main large parts of the machine tool: bed, worktable, column, beam, saddle, and headstock are all made of high-strength cast iron and resin sand. These large parts are optimized by three-dimensional computer software. The layout of the ribs is reasonable and has perfect The heat treatment process is used to eliminate residual stress and ensure that the whole machine has sufficient strength, rigidity and high stability.

Item	Unit	XH4022
X axis travel	mm	4000
Y axis travel	mm	2200
Z axis travel	mm	1000
Spindle nose to worktable	mm	280-1280
Distance between two column	mm	2300
Leadscrew diameter	mm	80/63/50
Linear guideway width	mm	55/55/Rectangle
Worktable Length	mm	4000
Worktable width	mm	2000
T slot qty-width*distance	mm	9-28*200
Max loading capacity	Ton	12
Spindle speed	rpm	6000/belt
Spindle motor power	kw	22
Fast moving speed	m/min	12/12/10
Cutting speed	mm/min	1-8000
Spindle taper		BT50
Feed motor power	kw	8/6/5
X/Y/Z axsis motor torque	Nm	50/40/30
Tool Magazine Capacity	pcs	Disc/24
Positioning accuracy	mm	0.020/0.020/0.018
Repeat accuracy	mm	0.012/0.012/0.012
Length	mm	10200
Width	mm	5000
Height	mm	5300
Weight	kg	350000

Standard accessories: Mitsubishi M80B system
Spindle belt type 6000rpm
24 tools disc type
Automatic lubricating system
Semi closed casing
2 helical type+1 chain conveyor
Rigid thread cutting
MPG
Work lamp
Air gun
Coolant through spindle
Air conditioner in cabinet
Nitrogen balance cylinder
Leadscrew from Hiwin Taiwan
X, Y axis linear guideway Hiwin Taiwan
Company Profile

Packaging & Shipping

---
