Factory Price High Speed Vibrating and Blowing Pile Turner with Dust Removal

Product Description

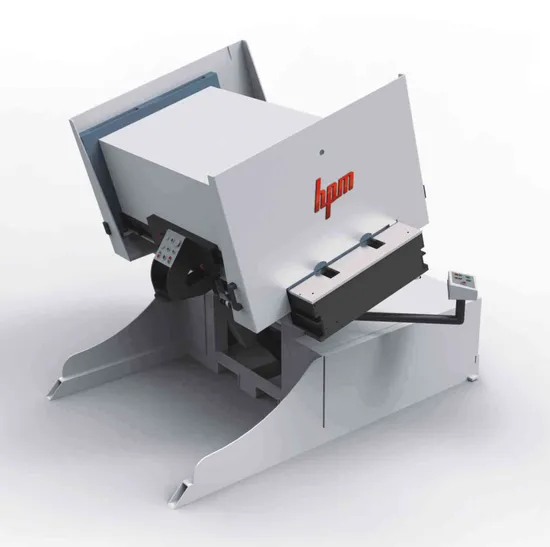

SFZ1800LA High Speed Vibrating and Blowing Pile Turner With Dust Removal
1.Function:
Alignment: when the paper pile is tilted, the paper stack can be aligned quickly by blowing with large air volume and high efficiency vibration.
Dust removal:remove paper scraps and other impurityies, improve the surface quality of the paper to be printed
Efficiency: due to the improvement of paper surface quality, the speed of printing machine can be increased by 3-5%
Long term:greatly reduce the paper wool, paper scraps and other impurities into the printing machine, prolong the life of the printing machine.
Products:the rate of waste and defective products decreased due to impurities such as paper wool and paper scraps, which can increase the yield by 2-3%
Drying: remove powder spray, speed up ink drying, quickly reduce printing ink solvent smell, prevent sticking, back rub dirty and other issues.
2.Machine Performance:
1 .Pile turner can be used for paper turning, blowing, foreign matter removal, drying, alignment and paper shaking. It is applicable to various kinds of gram weights and different kinds of paper.
2. Based on our years of experience and constant technological innovation, we could ensure the advancement and stability of the product. With a special body design, the product is very stable and durable.
3.paper pile can be rotated automatically thanks to the efficient servo motor and reducer. It could improve the working efficiency of paper piling significantly with the help of enhanced hydraulic system.
4.product is fitted with an integrated operation panel, with which, all functions such as paper pile turning, rotation, paper vibration and dust removal can be finished.
3.Configuration Listing:

No	Name	Brand, specification & model	Origin of brand
1	Servo driver	Inovannce	China
2	Vibration Motor	AMP/OLI-WOLONG	China
3	PLC	Inovannce	China
4	Air switch	TE	France
5	AC contactor	TE	France
6	Button	TE	France
7	Photoelectric sensor	FOTEK	China
8	Frequency Converter	Inovannce	China
9	Switch power	TE	France
10	Power switch	CANSEN	China
11	Miniature Relay	TE	France
12	Hydraulic Block	WAISN	China
13	Drive motor	BOSCH/LICHUAN	Germany/ China
14	connector	Weidmuller	Germany
15	Touch screen	MCGS	China

4.Configuration Listing:

Model	SFZ1800LA
Max. Width of plate	1800mm
Max. paper size(L*W)	1700*1300mm
Min. paper size(L*W)	600*500mm
Max. paper height(including two plates)	1630mm
Min. paper height(including two plates)	850mm
Max. Lifting capacity	3000kg
Rated voltage	380/220V
Gross power	31KW
Net weight	5100KG
Machine size(L*W*H)	3650*2560*2630mm
Packing size(L*W*H)	3660*2650*2100mm

5.Cettificate:
6.Company:

---
