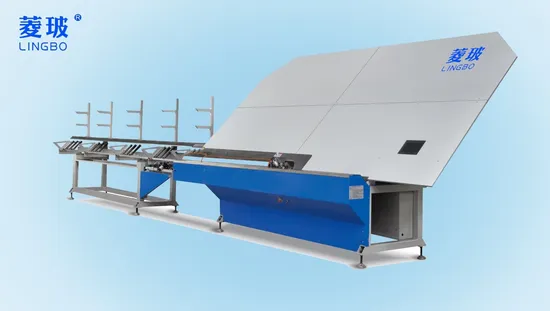

Factory Direct Automatic Aluminum Spacer Bending Machine

US$12,800.00

1-4 Pieces

US$11,800.00

5-9 Pieces

US$9,800.00

10-99 Pieces

US$8,800.00

100-999 Pieces

US$1,800.00

1,000+ Pieces

Basic Info.

Model NO.

ZWJ-01

Condition

New

Certification

ISO, CE

Automatic Grade

Automatic

CNC or Not

CNC

Voltage

380V

Function

Insulating Glass Machine

Keyword

Bending Machine

Manufacturer

Yes

Color

Customize

CE Certificate

Yes

Delivery Time

28days

Air Pressure

0.7MPa

Spacer Width

6mm-20mm

Conveying Speed

at 0-90m/Min(Adjustable)

Frame Max Size

2000mm×2000mm

Frame Min Size

350mm×350mm

Power

3p 415V/1p+N 240V, 50Hz 5kw

Supports

7X24 Online Supports

Usage

for Double Glass Processing

Producer

Yes

Transport Package

Plastic Film Package

Specification

ZWJ-01

Trademark

LINGBO

Origin

China

HS Code

8464901900

Product Description

Product Description
Factory Direct Automatic Aluminum Spacer Bending Machine
1.Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2.Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within ±0.3mm/m, angle error within ±0.3°.
3.Be able to imitate finished frame shape. The image is symbolic and lively .
4.Four profile magazines for different specifications of spacers .
5.All activities can be controlled manually for the convenience of test and overhaul.
6.Intelligently avoid spacer connection part. Automatic cutting after bending. Shape shift among line,angle and arc are flexible.
Product Parameters
Factory Direct Automatic Aluminum Spacer Bending Machine Technical Parameter

Spacer Width	6mm-20mm
Frame size	Max:2000mm×2000mm Min:350mm×350mm
Conveying speed	at 0-90m/min(adjustable)
Air pressure	0.7MPa
Power	3P 415V/1P+N 240V, 50Hz 5kW
Machine Size	10000mm(L)×2200mm(W)×2600mm(H)
