US$10,810.00
10-19 Pieces
US$10,380.00
20-29 Pieces
Basic Info.
Transmission Type
Automatic
Transmission System
Shaft Drive
Transport Package
Iron Frame and
Specification
2350x1278x1400 mm
Product Description

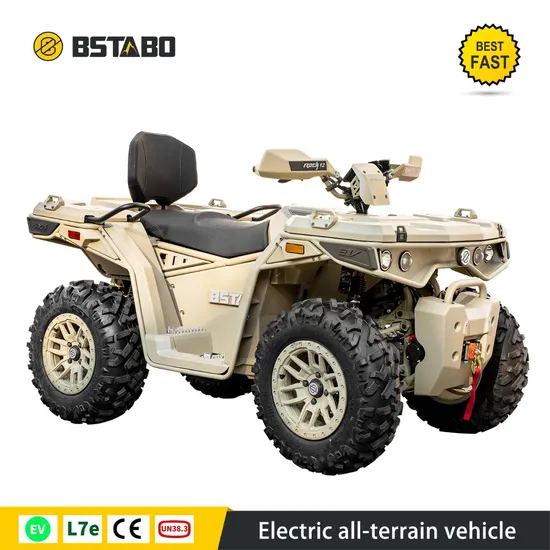

Product Description BSTABO 2024 new two seat 2WD/4WD 12KW 4 wheel electric ATV quad All terrain vehicle with 72Ah battery.
Product Parameters
| Model Name | Rock 12i |
| DIMENSIONS |
| Overall Vehicle Size (L x W x H) | 92.5 x50.3 x55 in(2350x1278x1400 mm) |
| Wheelbase | 57.5 in (1460 mm) |
| Ground Clearance | 11.8 in(300 mm) |
| Seat Height | 35.4in(900 mm) |
| Person Capacity | 2 |
| Max. Power | 22.8HP(17kw) |
| Max. Speed | 70km/h |
| Max. Wheel Torque | 1923N·m |
| Estimated Dry Weight | 992lb(450kg) |
| Payload Capacity | 540lb(245kg) |
| Climbing Capacity | 40° |
| Drive System Type | 2WD/4WD |
| Towing Capacity | 1500lb(680kg) |
| CHASSIS |
| Steering | EPS |
| Brakes | Hydraulic Disc Brake |
| Parking Brake | Lockable Handle, Mechanical Parking Brake |
| Front Suspension | Dual A-Arm Independent Suspension |
| Rear Suspension | Dual A-Arm Independent Suspension, With Balance Bar |
| Shock Absorber Type | Adjustable Hydraulic/Gas |
| Differential lock | Front Differential Lock |
| Wheels | 14 in. (35.6 cm)Aluminum |
| Front Tires | 27 x 9-14 |
| Rear Tires | 27 x 11-14 |
| ELECTRICAL SYSTEM |
| Instrument Panel | 5in TFT |
| Lights | LED headlights,LED taillights |
| BATTERY PACK |
| Rated Voltage | 144V |
| Battery Core Material | LFP |
| BMS | √ |
| Battery Capacity | 72Ah |
| Charging Time | 1.1h(20%-80%) |
| Estimated Range | 80km |
| ELECTRICAL MOTOR |
| Motor Type | Permanent Magnet Synchronous Motor |
| Rated Power | 12kw |
| Mas. torque | 136N·m |
Company Profile Bstabo Power Technology (Wuxi) Co., Ltd. was established in 2020, operating under its own brand "BSTABO." As a global all-terrain vehicle company, BSTABO is dedicated to providing reliable and high-quality electric all-terrain vehicle products to users worldwide.
BSTABO's brand slogan is "Make Exploration More Natural." The company strives to create joyful and passionate outdoor experiences for users, promoting a green, eco-friendly, and technology-driven lifestyle that brings people closer to nature and allows them to enjoy outdoor living.
