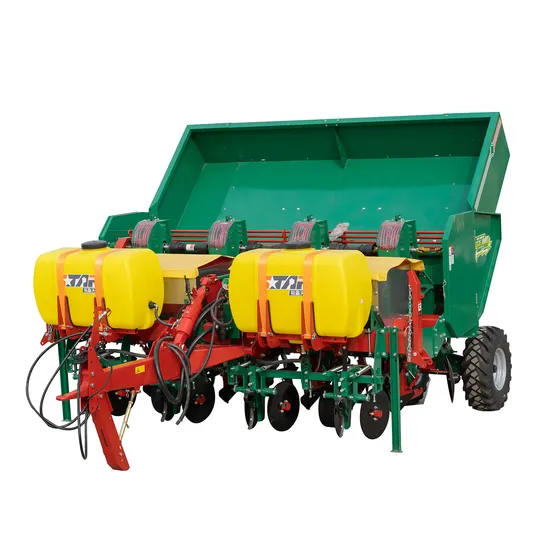

Wholesale Factory Supply Top Quality 4 Ridge 4 Rows Potato Planter with Fertilizer & Pesticide Spray Device

Product Description

Code No.	2CM-4B	Ditcher type	Double-sided Plow Point
Structural form	pull-type	Ridge type	Disc Type
Machine Size(L*W*H) :	4130×3880×1770mm	Working Efficency	1.2hm2/h
Machine Weight:	2600kg	Sowing Speed	3~6 km/h
Power Required:	73.5~132.3kw	Seed box Volume	4000L
Row spacing	700~900mm	Fertilizer box Volume	1000L
Working Rows	4 Ridge 4 rows	Pesticide box Volume	700L
Working Width	2800~3600mm	Transmission type	Ground wheel chain drive
Potato Weight	15~80g/	Wheel type	Herringbone Rubber Tyre
Planter Type	scoop form	Wheel Diameter	810mm
Planter Quantity	30×4	width of ground wheel	205mm
Distance Between Plants	170~440mm	sprayer heads	4×8

The 2CM-4B potato planter is a large scale machine suitable for large area mechanized potato planter. With high complexity, high precision, high adaptability and other advanced characteristics.
1,Sowing efficiency is high. Can be a one-time completion of ditching, planting, ridge, fertilization, spraying and a series of operations.
2,High precision sowing. Adopting advanced scoop type seed planter device and vibration, shaking, chain tensioning technology, low seed leakage rate, reseed rate, high sowing accuracy.
3,Strong adaptability. Planting depth and width, ridge width and row spacing can be adjusted according to planting habits in different regions.
4,Advanced potato ridge control technology: the existing potato planter mostly uses plough type supporting soil plate or disk type supporting soil plate, its Angle is not easy to adjust, irregular ridge shape. The potato planter broke through the inherent mode and developed the disc type ridge loader, which expanded the application range, making the applicable row spacing higher than the current 600-700mm to 700-900mm, and the suitable plant spacing higher than the current 200-350mm to 170-440mm. The ridge shape control is more diversified and can meet different agronomic requirements.
5,Pesticide spraying uniform. The spraying system uses PTFE nozzle with higher degree of atomization, not only its Angle can be adjusted, but also the traditional spraying after planting potato is changed to front and back spraying, so that the coverage is more tight.

---
