High Efficiency Planetary Concrete Mixer Pneumatic System for Sale Cement Mixer

Product Description

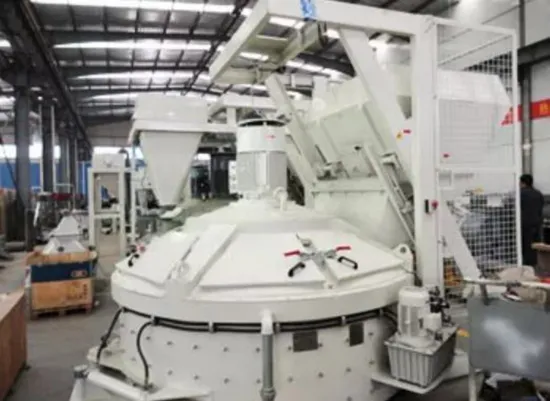

MP series Planetary Concrete Mixer, is researched, developed and manufactured using advanced Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete ,refractory mixer etc.It also have solved many mixing problems about HPC (High Performance Concrete).
Features of Planetary Concrete Mixer:
1 Strong, Steady, Fast and Homogeneous Mixing Performance
2 Vertical Shaft,Planetary Mixing Motion Track
3 Compact Structure, No Slurry Leakage Problem, Economic and Durable
4 Hydraulic or Pneumatic Discharging
Equipment parameter:
PLANETARY CONCRETE MIXER Item/Type CMP50 CMP100 CMP150 MP250 MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000

Outp capacity	50	100	150	250	330	500	750	1000	1500	2000	2500	3000
Input capacity(L)	75	150	225	375	500	750	1125	1500	2250	3000	3750	4500
Input capacity(kg)	120	240	360	600	800	1200	1800	2400	3600	4800	6000	7200
Mixing power(kw)	3	5.5	2.2	11	15	18.5	30	37	55	75	90	110
Mixing blade	1/2	1/2	1/2	1/2	1/2	1/2	1/3	2/4	2/4	3/6	3/6	3/9
Side scraper	1	1	1	1	1	1	1	1	1	1	1	1
Bottom scraper	1	1	1	1	1	1	1	1	1	2	2	2
Weight(kg)	700	1100	1300	1500	2000	2400	3900	6200	7700	9500	11000	12000
Dimension(mm)	950 *790 *1200	2021670 *1460 *1450	1670 *1460 *1620	1860 *1650 *1780	1870 *1870 *1855	2230 *2080 *1880	2580 *2340 *2195	2890 *2602 *2220	3230 *2902 *2470	3625 *3230 *2630	3900 *3550 *2695	3900 *3550 *2975

Mixing parts:

---
