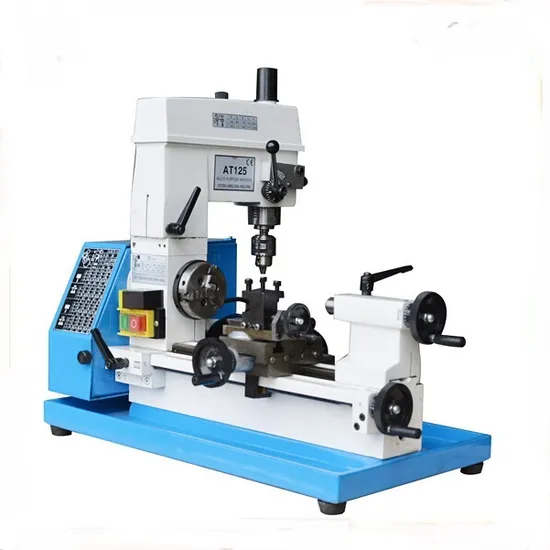

AT125 3 in 1 metal-cutting combo hobby lathe machine With CE Standard

Product Description

Features:
1.Compact,versatile combination machine
2.Adjustable height dril/mill head increase capacity
3.Fine feed handle and clutch for precision milling
4.Head stock provindes two steps of feeds
5.Spindle is supported by high precision bearing
6.T-slot cross slide
7. Adjustable gribs for the slideway
8.power longitudinal feed allows threading.
9.High precision chuck
Main specification:
Multi-purpose lathe mill drill machine:
Specifications: AT125
Max swing diameter over bed: φ125mm(5")
Max length of workpiece: 180mm(7")
Max swing diameter over tool carrier: φ60mm(2-2/5")
Spindle bore: 9mm(2-5")
Taper of hole in spindle Morse: No. 1
Metric thread kinds on processing: 8
Metric thread pitch on processing: 0.8-1.5mm
Inch thread kinds on processing: 8
Inch thread pitch on processing: 16-481/n"
Longitudinal feed on spindle tool carrier: 0.07-0.14mm
Max stroke on taper hole: 18mm
Taper of hole in tailstock: No.1
Spindle speed step: 5
Spindle speed range: 560-2500r/min
Drilling and milling:
Max drilling capacity: φ6mm(1-5")
Distance from bench to spindle nose: 120-180mm
Distance from spindle center and column: 125mm(5")
Swivel-angle of headstock around the column: 360°
Spindle speed step: 10
Spindle speed range: 500-2500rpm
Worktable dimension: 85×60mm
Taper of hole in milling spindle Morse: No.1
Stroke on spindle hole: 40mm(12-3/5")
Electric motor: 0.18kw
Net weight: 22kg
Overall size: 520×300×110mm
Standard accessories:
3-jaw chuck
Wrenches
Dead centers
drill chuck and arbor
change gears

---
