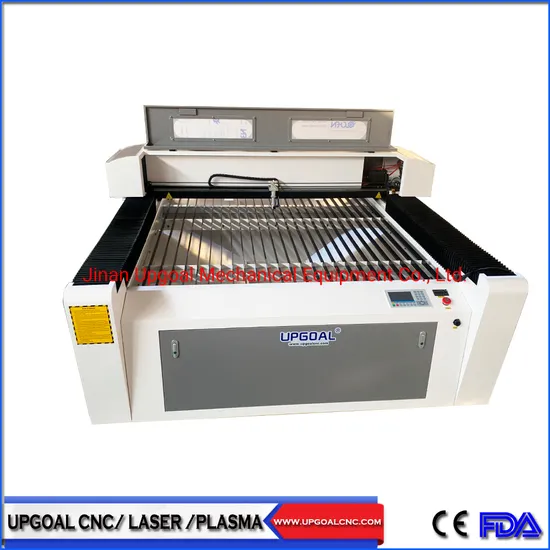

Large 1500*2500mm 100W Acrylic CO2 Laser Cutting Machine with Rdc 6445s Controller

Product Description

Large 1500*2500mm 100WAcrylic Co2 Laser Cutting Machine with RDC 6445S Controller
Features
Laser Head(with red dot positioning)
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Laser Tube
Adopted famous Reci W4 100W Co2 laser tube, rated power: 130W, peak power: 160W, long time time and stable

Working Table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality


Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Motion System
Imported High precision, low friction force and stand wear and CSK Taiwan linear guide rails and blocks with 3M belt ensured stable transmission, lower noise
Dust proof system for Y-axis
Operation System
Advanced USB port RuiDa RDC6445S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Blow- off system
Air pump(138W) and air blower(550W, 2 sets) for laser head & machine blow-off
Cooling System
Large Industrial chiller CW-5200( Teyu S&A brand), ensuring the laser tube long time continus working
Technical Parameters

Effective working area	1500*2500mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	100W, Reci W4 model
Working table	Knife strip and honey comb, double working table
Driver mode	3 phases stepper motor and Driver, Leadshine brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa 6445S
Control software	RDWorksV8
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5200 cooling(Teyu S&A)
Water protection system	Yes
Blow-off system	Air pump and air blower
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Applications
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Reference Sample Photos
Reference Working Videos
https://youtu.be/uH4NNiv85iY
Packing
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
