Product Details
Product Description
Product Description

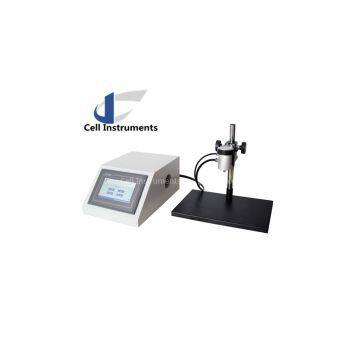

Leak and Seal Strength Tester pressure decay leak tester is suitable for the quantitative determination of sealing strength, heating sealingquality, burst pressure and leakage of flexible and aseptic packages.
This Seal Strength TestingSystem conforms to standards of ISO 11607-1, ISO 11607-2, ASTM F1140, ASTMF2054
Leak and Seal Strength Tester pressure decay leak tester Features
1. Threetest modes of burst, creep and creep to failure are available on Leak and Seal Strength Detector.
2. PLCprogrammable logic controller realizes precise pressure and time control.
3. 7inch TFT touching screen for convenient parameter setting and test operation.
4. Multiplegroups of test parameters can be save to avoid the repetitive setting time.
5. Testresult auto statistics and storage.
6. Program customizationavailable.
TechnicalSpecifications
Pressure Range 0 ~ 600 KPa; 0 ~ 87.0 psi (Standard)
Inflating Head Φ4mm (Standard)
Gas Pressure 0.4MPa~0.9 MPa
Port Size Φ6 mm PU hose
Dimensions 400mm (L) × 270mm (W) × 180 mm (H)
Pedestal Size 375mm (L) × 275mm (W) × 345 mm (H)
Power AC 220V 50Hz
Standards
ISO 11607-1, ISO 11607-2,ASTM F1140, ASTM F2054, GB/T 10440, GB 18454, GB 19741, GB 17447, GB/T 17876,GB/T 10004, BB/T 0025, QB/T 1871, YBB 00252005, YBB 00162002
>>
