Huge Capacity Qt10-15 Concrete Kerbstone/Hollow Block Moulding Machine/Brick-Making-Machine

US$39,000.00-45,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QT10-15
Certification
CE, ISO
Customized
Customized
Automatic Grade
Automatic
Type
Vibration Molding
Model No.
Qt10-15 Kerbs Making Machine
Productivity
12000-14400 Pieces 40X20X20cm Blocks /8 Hours
Dimension
3500X2300X2930mm
Pallet Size
1150X900mm
Mixer Model
Js750/Js1000
Processing Method
Hydraulic Pressure
Voltage
220-440V
Rated Pressure
21MPa
Vibration Force
100kn
Host Machine Power
44kw
Cycle Time
15-25s
Workship Areas
300m2
Vibration Frequency
4500r/Min
Weight of Host Machine
13t
Selling Point
Durable, Long Service Life
Transport Package
Standard Export Packing
Specification
Q235B Jigang steel
Trademark
weda
Origin
China
HS Code
8474802000
Production Capacity
120sets/Month

Packaging & Delivery

Package Size
3500.00cm * 2300.00cm * 2930.00cm
Package Gross Weight
100000.000kg

Product Description


Huge Capacity Qt10-15 Concrete Kerbstone/Hollow Block moulding machine/brick-making-machine
Product Description
Product Description(A-E)
SPECIFICATIONS FOR QT10-15 Concrete Kerbs making machine
Machine name QT10-15
Rated pressure 21Mpa
Dimension 3500x2000x2930mm
Forming Cycle 15-20s
Vibration form Platform vibration
Weight 10000kg
Working area 2000 sq.m
Pallet Size 1150x900mm

A Block Production Capacity
The Concrete Kerbstone production capacity depends on this forming machine and it is also an essential part of the
whole production line. You can change molds on these parts to make different shapes
of colored paving blocks, hollow bricks, and curbstones.
NO
Size(LXWXH)
Reference photos Pcs/Mould Pcs/Hour Pcs/shift
1 400x200x200mm
10 1500-1800 12000-14400
2 400x100x200mm
18 2700-3240 21600-25900
3 230x110x70mm
40 6000-7200 48000-57600
4 200x100x60 color paving brick
32 4800 38400
5 S paver blocks
20 3000 24000

Cement block samples
Block samples
Different shapes of colored paving blocks, hollow bricks, and Concrete Kerbs production by one machine only
Main electric Device
C Programme PLC with motor electronic parts
• The Concrete Kerbs making machine production process is controlled by PLC and fitted with a remote control device. for PLC control system, we usually use Japan Mitsubishi or Germany Siemens Brand
• The electricity motor for the host machine we use Germany Siemens motor, for other parts, we use CE motor.
• about the switches, we will use Europe famous brand or China CHNT
Packaging & Shipping
D Machine loading photos
Detailed Photos

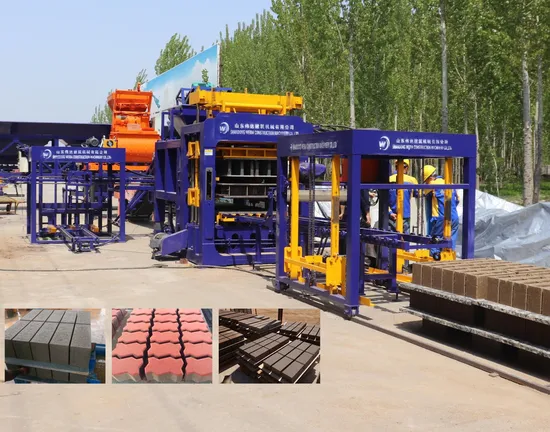

E Hollow Interlock Block Concrete Kerbs making machine in client site
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• The demolding synchronizer avoids the damage to concrete products.
• The vibration system for concrete curbs contains two-part, one is an up-mold vibration box, it is an electric motor to supply the power for the up-mould vibration box. And the down mold, there has one big vibration. when the scatter material work finish, the hydraulic power with the two vibration force will assure the good density of Hollow Interlock Blocks, solid pavers blocks, and concrete curbs..etc
Company Profile
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China. With RMB 16 million investment and 53,000 square meters area,
We are always developing good and reliable concrete block machinery, AAC block machines...etc Construction machinery with international standards to meet clients' demands(people-oriented, leading technology, winning quality, and serving user ).
We had exported to more than 100 countries. We have more than 60 technicians to ensure superior installations and after-sales service to assist clients to install the machine and perform the proper training abroad.
We warmly welcome customers from all over the world come to visit our factory and discuss long term cooperation. we are 24 hours service on you!
Thank you!
