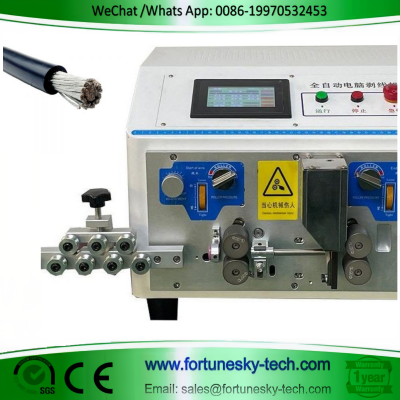

This cutting-edge machine features the latest 641-bit intelligent control system, a user-friendly Chinese and English switching LCD display, and touch screen operation. It can store up to 100 sets of information, allowing easy access for fast and efficient operations. With high-end configuration and precision, it ensures error-free length cutting and achieves high output rates. This versatile machine is perfect for lamp wires, power cords, flat power cords, and it also serves as an all-in-one solution for stripping the outer sheath and core wire of data cables. Experience the ultimate in convenience and efficiency with this advanced wire processing equipment.
| model | JT-510 |
| Dimensions | 680mmx560mmx480mm |
| weight | 90kg |
| Display method | 7inch touch screen (Chinese and English switching) |
| power supply(switching power supply) | AC220V/50-60HS |
| power | 800W-1400W |
| cutting length | 1mm-99999mm |
| Peeling length | Head stripping0.1-250mm, tail stripping0.1-100mm Depending on the wire |
| Cutting range | 1-70within the square BVWire35square,BVR70within the square |
| Suitable for wire | New energy vehicle wiring harness, rubber wire,pvcWire BVWireBVRWire cutting and peeling |
| Tool material | Tungsten steel/Imported high speed steel |
| drive mode | crawler drive |
| Wire stripping per hour | 400-1000Bar (according to the actual wire adjustment and change) |
| Wire pressure adjustment | motor adjustment |
| Roller mode | Lead screw motor lifting wheel |
| Pulse equivalent | 1In-line error0.02mm |
| Blade motor accuracy per step | Silent hybrid stepper motor per step0.1mm |
| Note function | Automatic outgoing line, automatic incoming line, timing start. |
