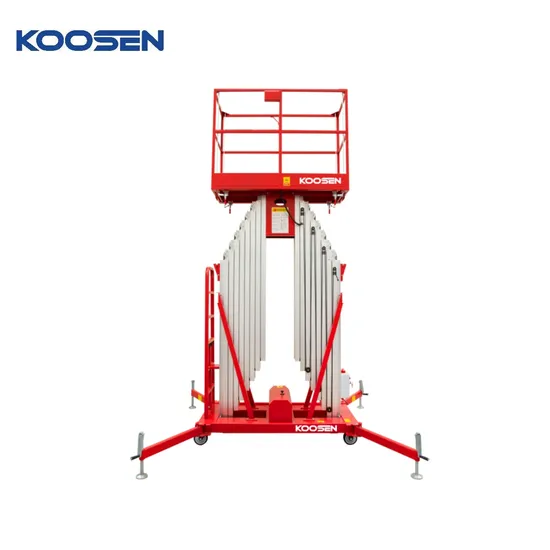

7.5m 9m Aluminum Alloy Double Masts Aerial Work Lifting Platform

Product Description

Product Description
The vertical mast lift AWP with swing outriggers is compact and very user-friendly. The AWP serie is available with a working height that varies from 8 meters to 14 meters. These platforms are easy to move, extremely manoeuvrable and fit easily through normal doorways. Loading and unloading is no more than a simple action through an advanced tilting system, which is mounted on any type of platform. The AWP series is equipped with a specially constructed base with which maximum stability can be realized. To increase the efficiency even more, the rise and fall rate of the machines has been optimized. Available with a 230V (AC) or a battery (DC).
Are you looking for a self-driving vertical lift? Then have a look at our AMWP serie.
Product Parameters

Size
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
Working Height	16.00m	14.00m	12.00m	11.00m	10.00m	8.00m
Platform Floor Height	14.00m	12.00m	10.00m	9.00m	8.00m	6.00m
Overall Length	1.90m	1.76m	1.76m	1.54m	1.54m	1.54m
Overall Width	1.16m	1.00m	1.00m	1.00m	1.00m	1.00m
Overall Height	2.35m	2.00m	2.00m	2.00m	2.00m	2.00m
Outrigger Footprint(L/W)	2.36m/2.33m	2.10m/2.00m	2.10m/2.00m	1.77m/1.82m	1.77m/1.82m	1.77m/1.82m
Platform Size(Length/Width)	1.52m×0.62m	1.52m×0.62m	1.52m×0.62m	1.30m×0.62m	1.30m×0.62m	1.30m×0.62m
Ground Clearance	0.05m	0.05m	0.05m	0.05m	0.05m	0.05m
Wheel Base	1.41m	1.41m	1.17m	1.17m	1.17m	1.17m
Performance
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
S.W.L	150kg	200kg	200kg	200kg	200kg	200kg
Max. Occupants	1	1	1	1	1	1
Up/Down Speed	112/102sec	100/90sec	88/78sec	80/70sec	75/65sec	55/45sec
Tyres(Back Wheels)	8in	8in	8in	8in	8in	8in
Tyres(Front Wheels)	7in	7in	7in	7in	7in	7in
Power
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP6-2000
Lifting Motor(AC)	110/230VAC/1.5kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW	110/230VAC/1.1kW
Lifting Motor(DC)	12VDC/1.5kW	12VDC/1.5kW	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW	12VDC/0.80kW
Betteries	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah	2×12V/100Ah
Integrated Charger	24V/12A	24V/12A	24V/12A	24V/12A	24V/12A	24V/12A
Weight
Model	AWP14-2000	AWP12-2000	AWP10-2000	AWP9-2000	AWP8-2000	AWP8-2000
Overall Weight	904kg/934kg	830kg/860kg	800kg/830kg	730kg/760kg	680kg/710kg	630kg/660kg

Detailed Photos

Packaging & Shipping
Company Profile
Exhibition
FAQ

1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.
