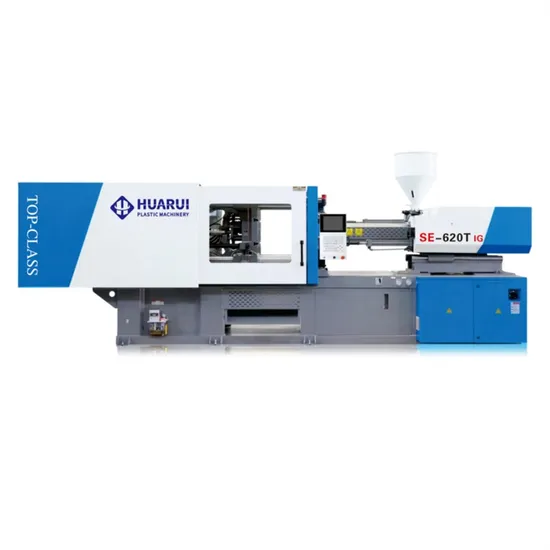

Plastic 620 Ton Beer Crate Injection Molding Machinery

Product Description

Plastic Injection Molding Machine Household Chair Making Container Pet Preform Pallet Cap Blow Injection Moulding Machine
Product Parameters

Se-620T/IG Plastic Injection Molding Machine Information
Item		Unit		A			B
Screw diameter		mm		105			110
Theoretical shot volume		cm³		3897			4276
Shot weight (PS)		g		5261			5773
Shot weight (PS)		oz		2845			3121
Length/Diameter ratio		L/D		18.8			18
Injection pressure		Bar		1171			1067
Injection rate		cm³/sec		1245			1366
Max.screw speed		rpm		200
Clamping force		KN		6200
Max.daylight		mm		1320*1270
Open stroke		mm		900
Space Between Tie-bars		mm		920*870
Min mould dimension		mm		400
Mould thickness range		mm		900
Ejector force		KN		160
Ejector stroke		mm		230
No.of ejector pins		unit		17
Max.motor power		KW		61+61
System pressure		MPa		175
Heater input power		KW		57
Oil filling capacity		L		800
Machine size		M		9.7*2.2*3.1
Net weight		KG		27000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
