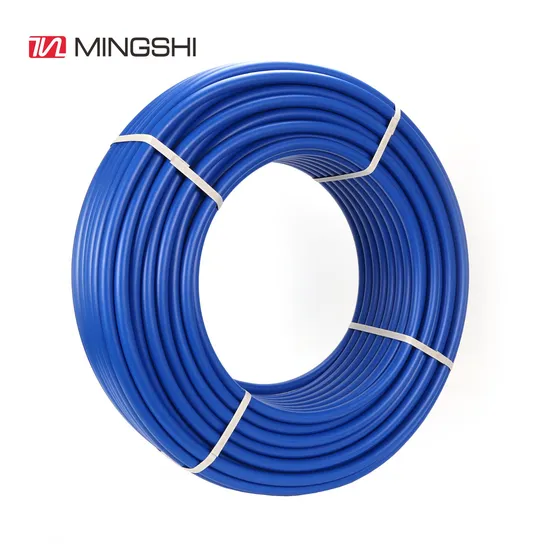

Aenor Wras Cstb NF Multilayer Pex-Al-Pex Water and Gas Pipe

US$0.79
5,000-9,999 Meters
US$0.59
10,000-19,999 Meters
US$0.39
20,000-89,999 Meters
US$0.25
90,000+ Meters

Basic Info.

Model NO.
pex-al-pex pipe
Compound Material
Aluminium Plastic Compound Pipe
Material
PEX-Al-PEX
Installation and Connection
Clamping Type Installation
Technology of Plastic Composite Pipe
Internal and External Coating
Base Pipe of Plastic Composite Pipe
Butt-Weld /Overlapped Welding
Plastic Composite Pipe Coating Form
Inner and Outside Coating
Plastic Composite Pipe Model
16-63mm
Aluminium Plastic Compound Pipe Use
Water Heater Tube, Water Distribution Pipe in Building, Gas/Floor Heating/Hot Water
Aluminium Plastic Compound Pipe Material
Crosslinked Polyethylene Aluminum Composite Pipe
Size
12, 16, 18, 20, 25, 32, 40, 50, 63mm
MOQ
10000 Meter
Certificate
CE /Aenor /Skz /Cstb/Wras/NF
Delivery Time
30days
Pipe Color
Yellow, White, Blue,Oragne,Red,Other
Welding Type
Overlapped and Butt-Weld
Roll Size
25/50/100/200/400/500m Roll
Transport Package
CTN Boxes, Knitting Bags, Kraft Papers, Pallets
Specification
Aenor, Skz, Snas, Phz, SGS, Watermakr, Jaswic
Trademark
MSP/MINGSHI/OEM
Origin
China
HS Code
3917300000
Production Capacity
7million Meters/ Month

Packaging & Delivery

Package Size
35.00cm * 20.00cm * 15.00cm
Package Gross Weight
1.000kg

Product Description


Essential details
Place of Origin: Zhejiang,China Material: Pex,aluminum
Specification: 16-63MM Length: 25/50/100/200/300/500 or OEM
Thickness: 2.0, 2.5, 3.0, 4.0, 4.5, 6.0 Standard: AENOR,SKZ,WRAS,WATERMARK
Processing Service: Cutting Product name: Pex-Al-Pex pipe
Application: Gas system,Water system, Under floor heating. Type: Plastic Building Material
Raw Material: Pex, Aluminum Colors: White,Red,Blue,Orange,Red or OEM
Logo: Support custom logo Features: Corrosion Resistant,fire resistant,high pressure
MOQ: 10000m Welding type: Butt-weld and Overlapped
Advantage: Flexible,easy to install
Supply Ability
Supply Ability: 3000000 Meters per month
Packing&Delivery
Packing Details: With craft paper, then plastic film outside/Plastic bag
Port: Ningbo or Shanghai
International Standards
1 EN ISO 21003 Multilayer piping systems for hot and cold water installations inside buildings
2 AS 4176.2 & 3 Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS
3 ISO17484-2:2009 Multilayer Plastics piping systems for indoor gas installations
International Certificates
1 AENOR refers to EN ISO 21003,UNE-EN ISO 53007
2 QB refers to EN ISO 21003
3 ACS refers to XP P41-250
4 Watermark refers to AS 4176.2 & 3
5 WRAS refers to Regulators' Specification
6 ISO 9001:2015 Quality management system
Size&Tolerance
Nominal size(D x e) 14×2.0 16×2.0 18×2.0 20×2.0 25×2.5 32×3.0 40x4.0 50x4.5 63x6.0
Outside diameter (mm) 14 16 18 20 25 32 40 50 63
Tolerance of Outer diameter (mm) Min 14 16 18 20 25 32 40 50 60.6
Max 14.3 16.3 18.3 20.3 25.3 32.3 40.4 50.5 63
Inside diameter(mm) 10 12 14 16 20 26 32 41 51
Tolerance of Inner diameter (mm) Min 9.9 11.9 13.9 15.9 19.9 25.9 30.9 39.4 49.3
Max 10.2 12.2 14.2 16.2 20.2 26.2 31.9 40.8 50.8
Pipe thickness (mm) 2 2 2 2 2.5 3 4 4.5 6
Tolerance of pipe thickness (mm) Min 2 2 2 2 2.4 2.9 4 4.5 6
Max 2.25 2.25 2.25 2.25 2.7 3.2 4.6 5.2 6.8
