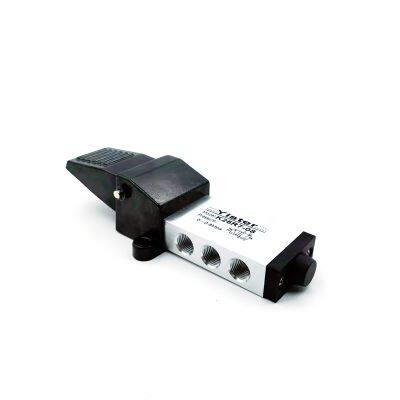

5 way 2 position K25R7 Pneumatic Machinery Pressure Control switch foot valve
Order code
Symbol
Technical parameter
Model No
| K23R7-L6
| K25R7-L6
| K23R7-L8
| K25R7-L8
|
|
Fluid
| Air
|
Port size
| 06:G1/8”
| 08:G1/4”
|
|
Valve type
| 3/2 way
| 5/2 way
|
|
Pressure range
| 0.05~0.8Mpa
|
Temperature
| -5~50℃
|
Net sectional area
| 10mm²
|
Leakage rate
| ≤50cm²/min
|
Dimension
Feature
.K25R7-L6 aluminum foot pedal valve is designed with direct acting, which is steady and reliable;
.If the duration of direction-change is long, the valves with lock may be used;
.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact;
About us
Yister Pneumatic mainly produces and sells:Pneuamtic foot valve, air control switch,foot pedal control valve ,foot pedal water control valve ,floor foot pedal control switch valve ,foot pedal control switch valve
pneumatic foot pedal control valve ,foot pedal operated air directional control valves
