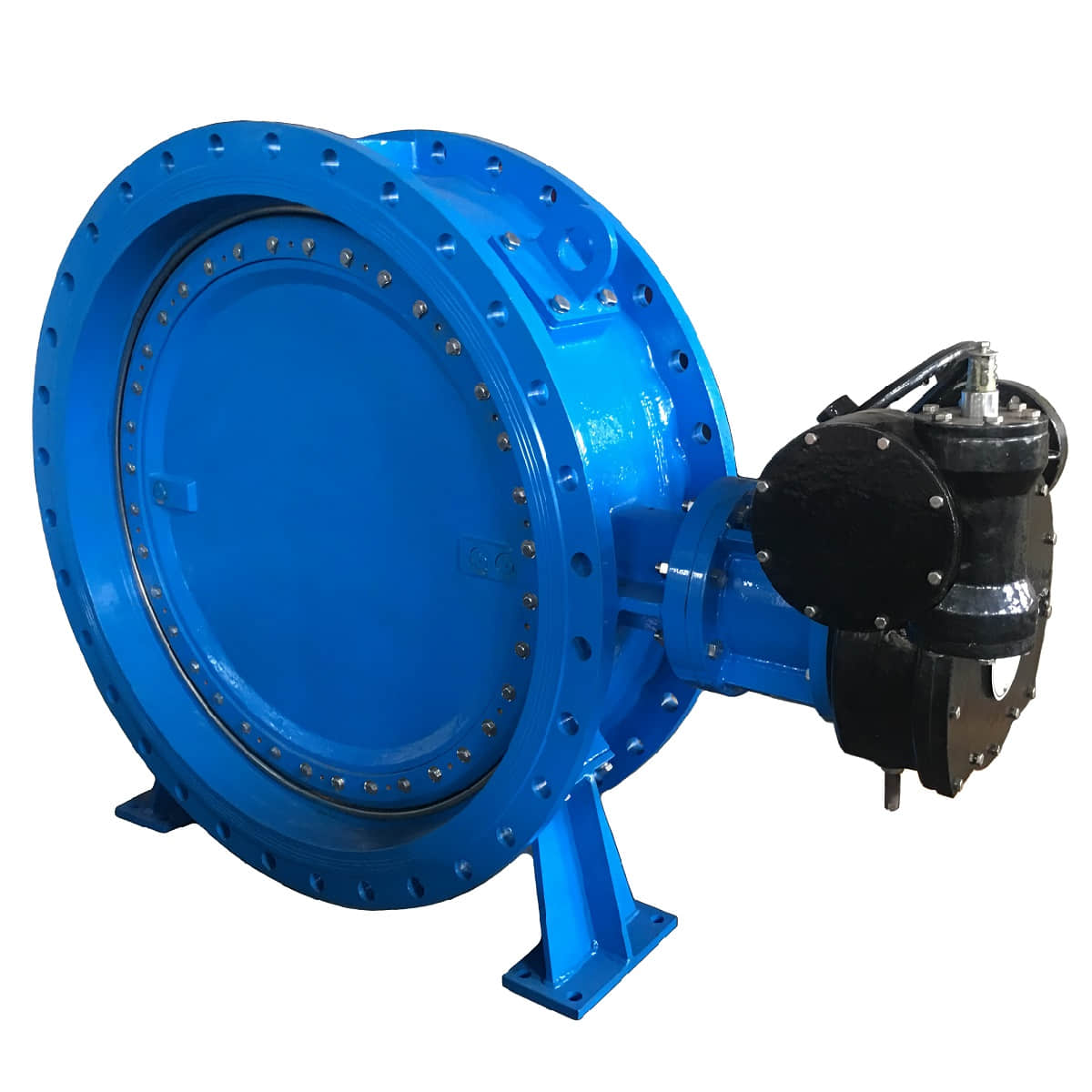

Double Offset Soft Seated Butterfly Valve

Product Details

Product Description

Product Description
General
Suitable applications: Water. Oil. Gas.
Design&Manufacture: API 6D , ASME/ANSI B16.34
F TO F dimensions: ASME/ANSI B16.10
Connection: ASME/ANSI B16.5 & B16.47 A/B series. BW,RTJ are available .
Pressure rating : 150LB and above
Size: 2" and above.
Sealing structure: soft seal for pure gas/liquid medium, metal seal for general medium that contain solid powders.
Safety design: Fire safety (API607), anti-static& anti-blow out stem, DBB function.
Inspection and approval norm: API598,API6D .
Quality control
100% Chemical analysis and mechanical test with raw materials of each heat numbers.
100% DPT test with the castings, partly MT or UT test , RT is always available if required.
100% hydraulic test with the shell and seal and low pressure air test.

---
