| US$3,000.00-50,000.00 | 1 Set (MOQ) |

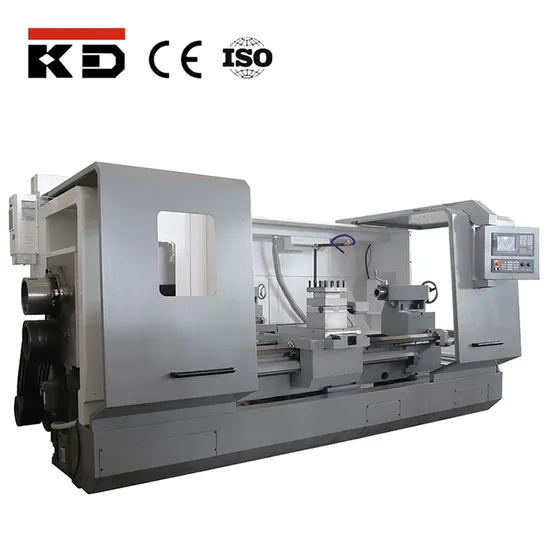

ITEMS | CKG200 |
Max. swing over bed | Ø 900mm |
Max. swing over carriage | Ø 550mm |
Width of bed | 560mm |
Maximum turned length | 2000/3000mm |
Max. turning length | 1350/1790/2800mm |
Spindle nose | Ø 50- Ø 200 mm |
Spindle bore | A2-15 |
Cone hole diameter and taper of spindle hole | Ø 210mm |
Steps of spindle speed(Manual) | 4 gears(stepless in each) |
Range of spindle speed | 10~60 20~115 35~205 65~380 rpm |
Rapid feed for Axis X | 5m /min |
Rapid feed for Axis Z | 10m /min |
Max. travel of Axis X | 500mm |
Max. travel of Axis Z | 1850/2850mm |
Min. input | 0.001mm |
Tool post stations | 4 station |
Tool cross section | 40× 40 mm |
External diameter | Ø 100mm |
Taper of bore | MT. No. 6 |
Max. Traverse | 230mm |
Power of main motor | 18.5 KW |
Power of cooling pump | 370W |
Overall dimensions(L× W× H) | 4000/4500/5500x1900x1860 |
Net weight | 5500/6000/6800kg |
