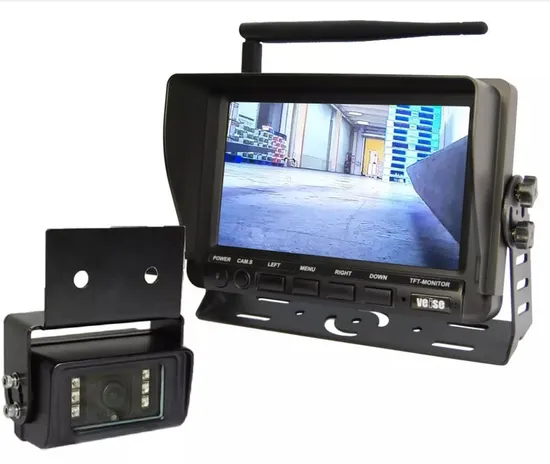

HD Camera Wireless Front Backup Camera System for Heli Forklift

Product Description

Forklift HD Camera 720P wireless front camera system AHD back up camera

720P Stainless steel wireless camera built in 2.4GHz digital wireless transmitter.
Support two-channels 1080P/960P/720P/CVBS signal input and split-view image
600cd/m2 Brightness
Stainless Steel Camera with IP69K Waterproof
Camera 100% nitrogen filling for Antifogging
Camera cable low temperature resistance-40 ºC MODEL:HDWS-772S16A1M1
720P Digital Wireless Receive Monitor(Model:MWHD-772S) 7" HD Screen Monitor with Removable Sun Visor Built in 2 CH 2.4GHz Digital Wireless Receiver Operation Frequency:2400 ~ 2483.5MHz Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) Overlapping Hopping Channel:80Color System:PAL/NTSC Display Resolution: 1024RGB(H) X 600(V) dot Wide view angle(CR>10):(up/ down): 50/70 (left/right): 70/70 Back-light : Single LED 600cd/m2 Brightness Contrast ratio: 500:1 Operating temperature: -20ºC to +70ºC Storage temperature: -30ºC to +80ºC Free Operating Voltage: DC8~32V External dimensions:L*W*T(207X149.5X85)mm(without mounting) Weight Approx: 600g 720P Digital Wireless Waterproof IR Camera(MODEL:CWHD-16A1M)
Image Type: 1/3.7 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power:18dBm with Power control
Line of Sight Range:≤300M
Horizontal Resolution:720P
Effective pixel:PAL:1280(H)X960(V)
Usable Illumination : 0Lux ( Built in 6pcs IR LED's for Picture Support in the Dark)
Free viewing angle:120°
IR-CUT: Automatic switch, day and night mode
Waterproof: IP69K
Shockproof: 10G
Free Operating Voltage: DC8-32 Volts
Dimensions:103.5(W) x 89(H) x 67(D) mm
Weight : 450g
Accessorie: U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*1,User's Manual
Specifications Digital Wireless Camera Monitor Systems
1)7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver/Transmission distance/anti-interferenceability/Free wiring, a Dentsu, easy to install.
2)Monitor circuit has protector for battery reverse(+/-).
3) LED backlight display with constant voltage constant current circuit protection. It can solve LED working temperature problems (the limit of LED backlight's current) and prolong life.
4)Monitor OSD menu can set each channel camera image in 4 mode NOR/MIR/UP/DOWN;the priority for each mode; each trigger cable can be set to trigger to any display mode; time delay setting.
5)Two channels digital wireless signal transmission. It supports sub-screen and two screens.
6)2.4GHz Digital Wireless Camera 10G Vibration, IR LEDs for Night Vision.
7) DC14+87V(Td400mS) 5pulses Load Dump, 400cd/m2 Brightness .
8)Free Operating Voltage: DC8~32V
Services: 1, Reply your inquiry in 24 working hours.
2, Customized design is available, OEM and ODM are welcomed.
3, Deliver the goods to our customer all over the world with speed and precision.
4, Offer customer the lowest price with high quality Camera and Monitor.
5, Well-trained and experienced staff to answer all of your inquires in fluent English.
6, Protection of your sales area, ideas of design and all your private information.
FAQ:
1.Are you a trading company or factory?
Answer: We are factory in Guangzhou.
2.What's the warranty of your products?
Answer: Monitor:2 years; Camera:1 year.
3.What's the payment term?
Answer: T/T,Western Union,Paypal and L/C are available.
4.How can I place the order?
Answer:Please send us an inquiry,confirm your preferable models,our sales shall send you a proforma invoice.After receiving your payment,we will arrange to get goods ready and ship out.

---
