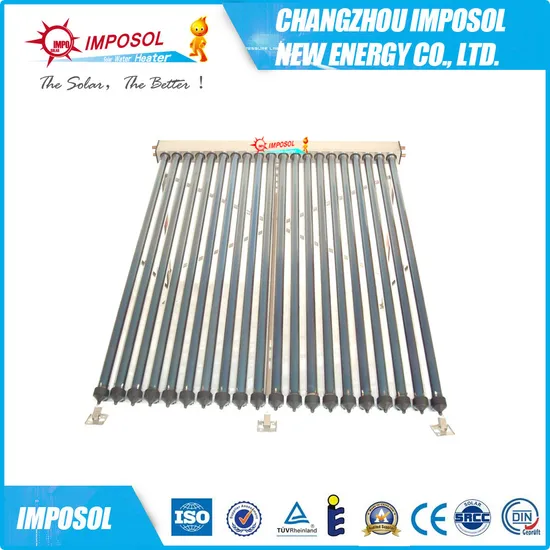

Construction of Heat Pipe Solar Water Heater Collector

Product Description

Construction of solar water heater
Specifications:
1) inner manifold: Copper header
2) outer manifold: Stainless steel SUS304-2B
3) Insulation: Rock wool
4) Rubber Seals and Rings: UV stabilized high temperature silicon rubber
5) Optimal installation angle: 20-80 degree
6) Maximum Operating Pressure: 0.6-0.8 MPa
7) Optimal flow rate: 0.1L/min/tube - 0.026G/min/tube
8) Glass tube dimensions: 47mm x 1.5m x 10-36 pcs 58mm x 1.8m x 10-36 pcs
9) Heat pipe material: Copper
10) Heat preservation: 72hrs
11) Hail resistance: 25mm
12) Inlet & Outlet: Ø 22 or 3/4 inch
Detailed Product Description:
1) solar collector is designed with pressure up to 0.8Mpa.
2) Easy to use, also convenient to install
3) Can be put in the courtyard, on the roof or balcony
4) Inlet water hole connects to the tap water, and the outlet hole connects to the tap water, and the outlet hole produces pressure hot water directly
5) Efficiency: The advantage of solar tubes is that insulate the inner tube from heat loss. This means that once heat is absorbed, it is transferred to the water in the manifold, and not lost to the outside environment. This is the key difference between solar tubes and flat plate solar collectors: The insulative properties. Combined with heat transfer efficiency of the heat pipe, the collector can deliver excellent heat output all year round.
6) Aesthetics: Solar collector is designed to be low profile, sitting closed to the surface of the roof. Tubes are black and so blend in nicely with most roof colors.
7) Heat pipe has its special principle and function, and no water in the pipe. If one of the pipe is broken, the heat collector still could be used normally.
Certificate: SRCC, Solar Keymark, CE and ISO9001

Water tank		Inner tank: stainless steel SUS304-2B,0.4mm thickness, 360mm
		Outer tank: galvanized steel,0.4mm thinckness, 470mm
		Insulation: polyurethane foaming, 50mm thickness
		Working pressure: 0 Bar
		Heat preservation: 72 hours
		Capacity:180/200/240/300/360L
Vacuum tube		Structure: all-glass double-tube co-axial structure
		Material: high borosilicate glass 3.3
		Coating: AL-N/SS/CU
		Sediment method: 3 target magnertron sputtering plating
		External pipe: Φ58mm, Internal pipe: Φ47mm, Length:1800mm, thickness:1.6mm
		Vacuum tightness: P≤5.0*10-3Pa
		Absorption Rate: 93%~96% (AM1.5)
		Emission Rate: 4%~6% (80°C±1.5°C)
Copper coil		Material: red copper
		Length:18/20/24/30/36m,thinkness:1mm, Φ10mm
Frame		Galvanized steel,1.5mm thickness, 100mm*100mm
		Angle: 45°
Accessories		Fasteners: stainless steel screws
		Feeder tank: 5L, galvanized steel
		1500 kw electrical heater as back up
		Sealing ring: silicone rubber
Warranty		5 years

---
