High Precision Metal Cutting Xu6332u Vertical Milling Machine

Product Description

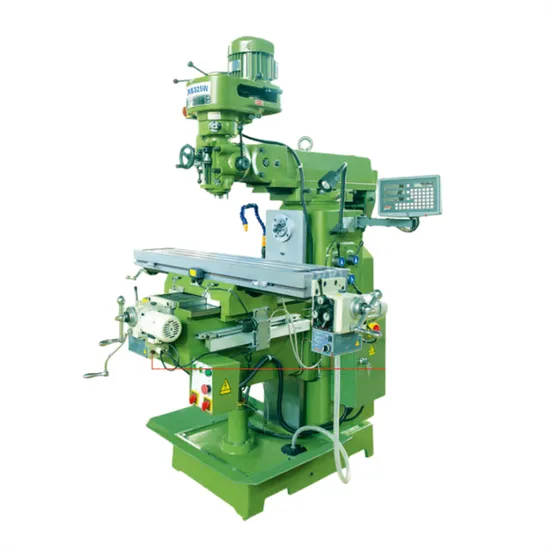

Product Picture
Specification Parameter

Specifications	XU6332W
Table size(mm)	320X1570
Longitudinal travel(mm)	1000
Transverse travel(mm)	400
Vertical travel(mm)	450
Spindle speed range(rpm)	(V) 16steps 66-4540
	(H) 12steps 40-1300
Spindle travel(mm)	127
Automatic spindle feeds	0.04/0.08/0.15
Distance between spindle center and Column(mm)	155-635
Distance between spindle nose and Table top(mm)	0-460
Spindle taper	(V) NT40
	(H)NT40
Spindle motor power(kw)	(V) 3.7 (H)3.0KW
Head swivel	90°
Head tilting	45°
Machine weight (kg)	1650KG

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
