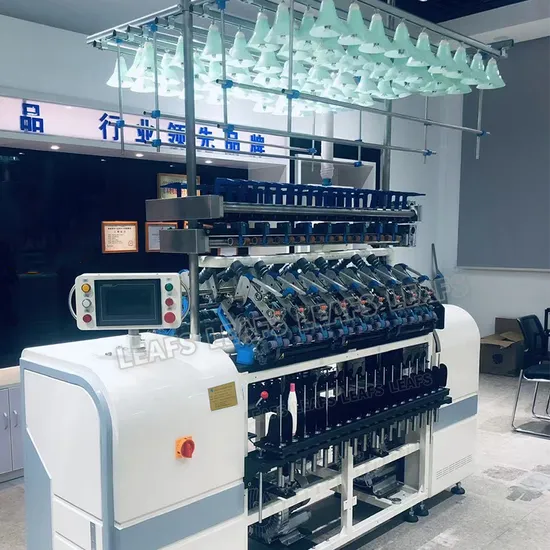

Full Function Fancy Yarn Sample Compact Ring Frame Spinning Machine with Fully Servo Motor Control

Product Description

Product Description
Full-function fancy yarn sample ring frame can do slub yarn, injected yarn, mosaic yarn, yarn that changing the twist the combination, double core-spun yarn, core-spun type products.
The fully servo drive system includes quality management, production management, alarm system, process parameter warehouse, process parameter setting system as well as random spinning, experts spinning such as a full range of technical support, the realization of these function are greatly convenient for factory to do the proof or sample.
It improves the work efficiency, also province the labor, material. This provide the spinning factory the power to take control in newly developed fancy yarn market and so to create more economic benefits.

Product Parameters

Fiber length	Fancy yarn, slub yarn, injected yarn, mosaic yarn, double core-spun yarn, core-spun type products.
Spindle Gauge	70mm
No.of spindles	18 or 36 Spindles
Yarn Count	5-100Ne
Twisting	200-1800 (T/m)
Spindle driving	Double tape tension pulleys
Max stroke of ring cup	170mm
Spindle speed	5000-15000RPM
Roller diameter	25mm
Voltage	220V Single phase

Features
1.Adopt position control model
The device adopts high precision positioning control servo motor. It is using pulse way to work, a pulse to run a fixed Angle, after the 360 ° error to zero (in high precision nc machine tools machining center are controlled by this way), so, parameter setting can be directly input section length, pitch, and the section length and pitch can be reliable guaranteed.
2.Fully servo control
This device of control system drives three roller and ring rail completely independent, compared with the traditional spinning ring frame transmission, it is more smoothly, less noisy.
3.Process warehouse management system
The establishment Process of the warehouse, for technical staff, it is very convenient doing the design and manage the different type fancy yarn, it provides the engineer 100 craft shelves, each process can have up to 50 number of sets of process parameters, for calls or storage, modify at will.
4..Expert process self - setting system
This spinning mode will become the main spinning mode for a long time to come. The expert process self-setting system is based on the evolution of CAD system.
5.Intelligent Corrugated Yarn Device
It is mostly composed of a high-end servo system, Siemens PLC, two high-precision encoders and a mechanical transmission. The reformed spinning frame, combined with intelligent corrugated yarn devises, may detect corrugated slubs generated through overfeed of front rollers, middle and back rollers.
6.·Unique Drafting System
Solve Apron Movement and Low Efficiency Problem
. Power Intelligent Core and IOT Technology Broaden the Variety, Easy to Spin and More Fancy
. Accurate Positioning System No tailing on Fancy Yarn Variety
*Mosaic Yarn; *Slub on Slub; *Slub +Injection; *Slub, Injection, Siro Slub, Vario Siro, etc...

7.Compact Spinning Instrument
We apply optimized machine spinning section and reasonable spinning angle, weak twistin ng area is small, so the twist delivery is good and spinning tension diversity is small, which can greatly reduce end breakage rate. Equip ped with four-roller negative-pressure compact spinning instrument, with same craft, 3mm hairiness reduces 70%,mightiness increase es 10%,CV improves about 0.2. enhance fiber materical capacity, decreases the twist rate about 10%, broken yarn rate reduces about 600%, and loss of fiber reduces about 0.01%,and flyings reduces greatly.
Deatails
Yarn Type
Full-function fancy yarn sample ring frame can do kinds of fancy yarn ----slub yarn, injected yarn, mosaic yarn, yarn that changing the twist the combination, double core-spun yarn, core-spun type products.
Interntional advanced inspection instrument.
Leafs Company devotes itself to control and improvement of products'quality, spent more investment importing international advanced testing and inspection instruments for researching and development of new products and daily inspection of ordinary products.
Our Advantages
Based on the Digital Textile Technology Research Institute of Qingdao University, we have developed the whole sample spinning production line and lab weaving line. It is used for teaching research and new product development in textile colleges and scientific research institutions.
Production process

Company Profile

Packaging & Shipping
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered. FAQ

Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.

Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
